8530.500

P/N 8530.500

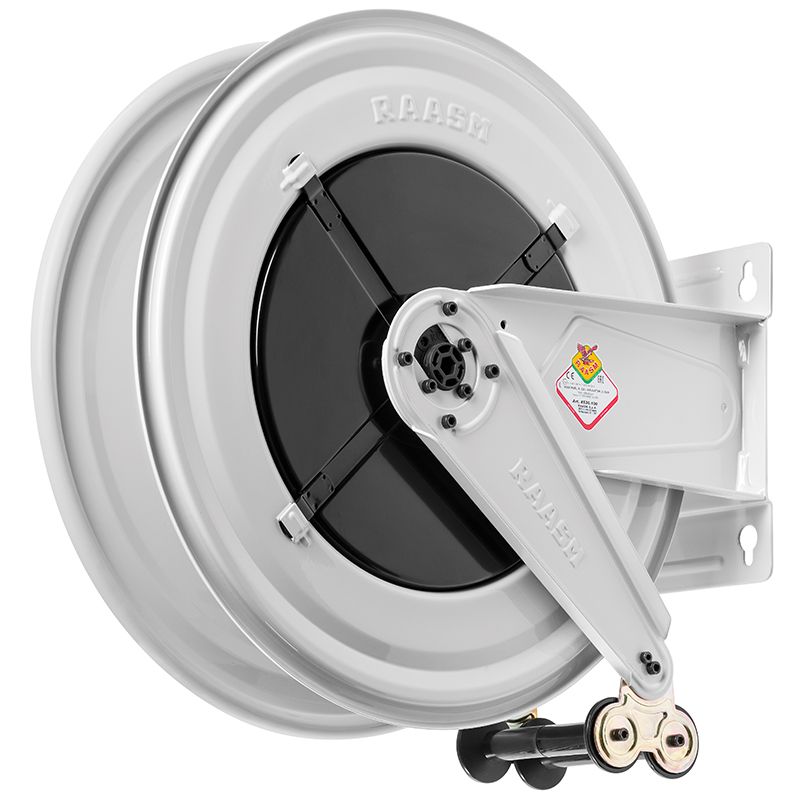

Fixed hose reel s. 530, for grease, 600 bar, without hose. Inlet G 3/8" (f) - outlet G 1/2" (f)

Features

Pressure 600 bar
Compatible fluids grease
Swivel joint zinc plated steel
Seals polyurethane
Characteristic fixed
Material painted steel
Couplings -
Hose -
ø and hose length -
Inlet G 3/8" (f)
Outlet G 1/2" (f)
Reel flow path zinc plated steel

Certifications

8530.500

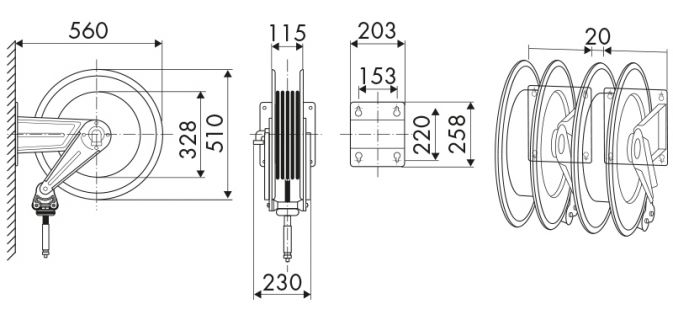

Overall dimensions (mm)

8530.500

Hose reels capacity

ø 3/8" ø 1/2"
25 m 25 m
