8530.501

P/N 8530.501

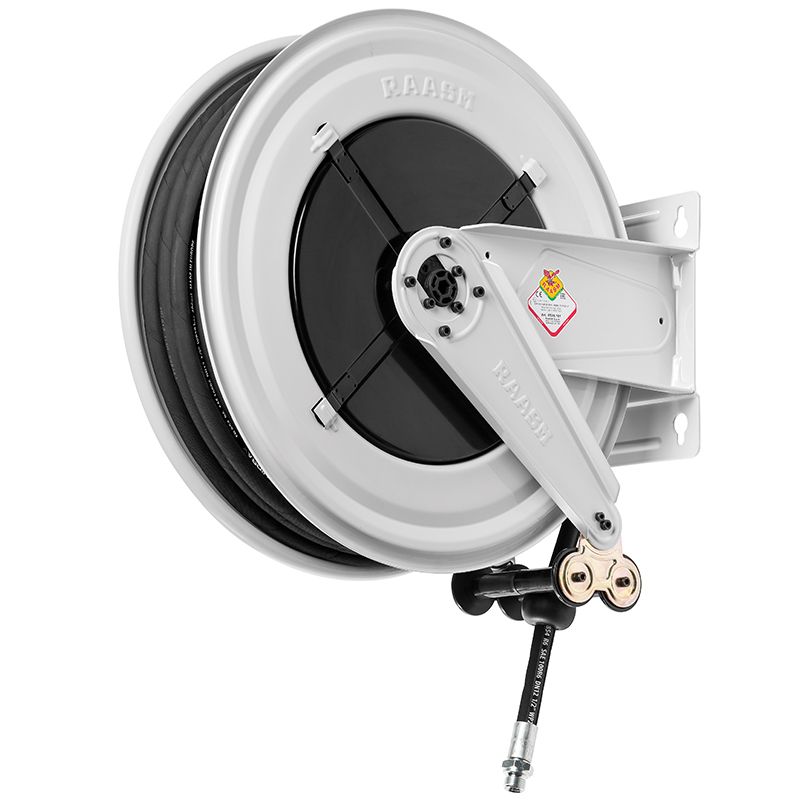

Fixed hose reel s. 530, for grease, 400 bar, with black hose 20 m, ø 3/8"

Features

Pressure 400 bar
Compatible fluids grease
Swivel joint zinc plated steel
Seals polyurethane
Characteristic fixed
Material painted steel
Couplings zinc plated steel
Hose p/n 995.720
ø and hose length ø 3/8" - 20 m
Inlet G 3/8" (f)
Outlet G 1/4" (m)
Reel flow path zinc plated steel

Certifications

8530.501

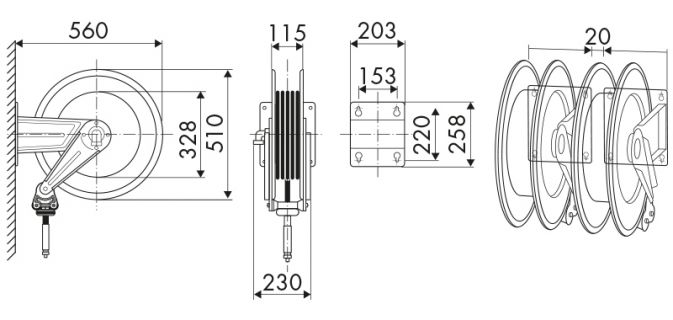

Overall dimensions (mm)

8530.501

This product is also available without hose

Go to product sheet
