8530.416

P/N 8530.416

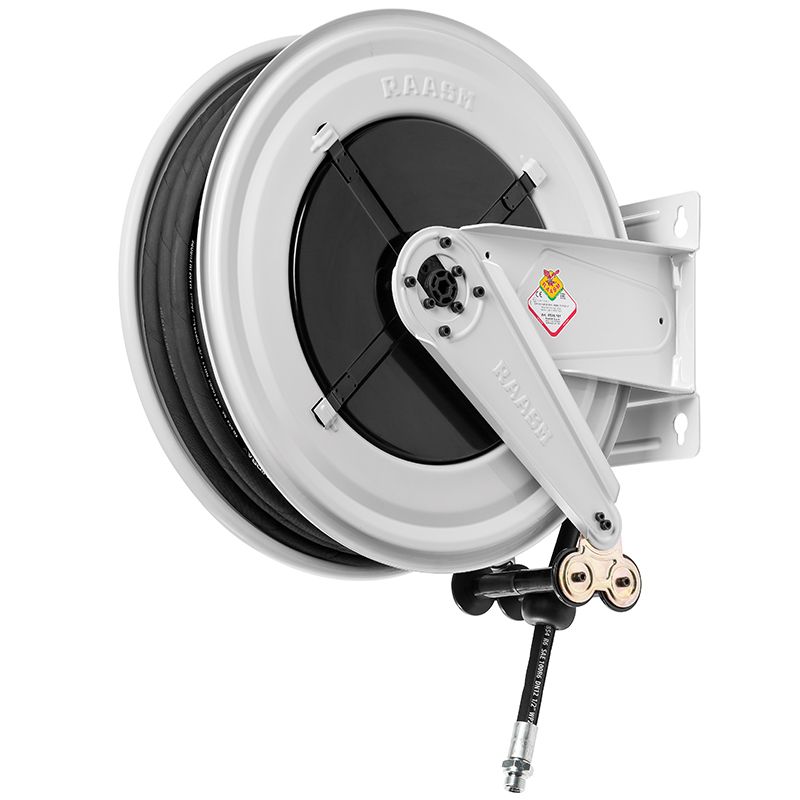

Fixed hose reel s. 530, for oil and similar, 100 bar, with black rubber hose 12 m, ø 3/4"

Features

Pressure 100 bar
Compatible fluids water max 130 °C, oils and similar products
Swivel joint zinc plated steel
Seals polyurethane
Characteristic fixed
Material painted steel
Couplings zinc plated steel
Hose p/n 997.3312
ø and hose length ø 3/4" - 12 m
Inlet G 1" (f)
Outlet G 3/4" (m)
Reel flow path zinc plated steel

Certifications

8530.416

Overall dimensions (mm)

8530.416

This product is also available without hose
