246544.350

P/N 246544.350

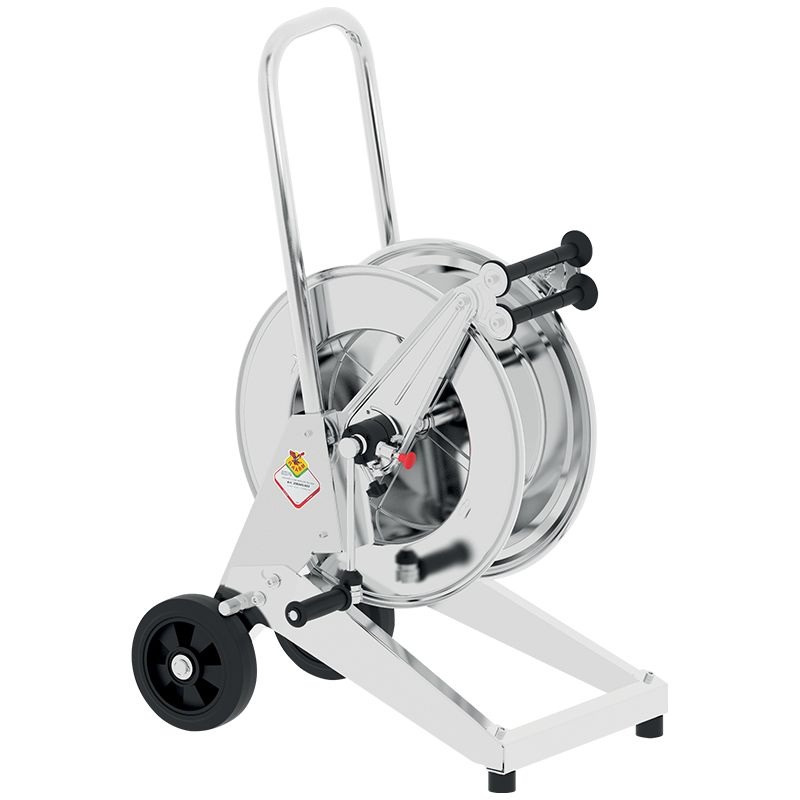

Manual trolley-mounted hose reel in AISI 304 stainless steel s. 540, for hot water, 400 bar, without hose. Inlet G 3/8" (f), outlet G 1/2" (f). Hose guide, safety system and rotation lock as standard

Features

Pressure 400 bar
Compatible fluids water max 130 °C
Swivel joint AISI 304 stainless steel
Seals Viton® and Teflon®
Characteristic trolley-mounted
Material AISI 304 stainless steel
Couplings -
Hose -
ø and hose length -
Inlet G 3/8" (f)
Outlet G 1/2" (f)
Reel flow path AISI 304 stainless steel

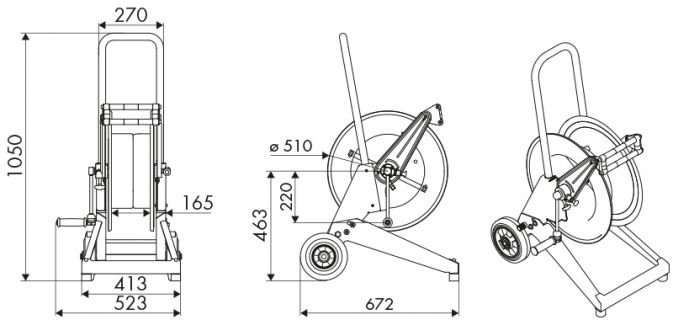

Overall dimensions (mm)

246544.350

Hose reels capacity

ø 1/4" ø 5/16" ø 3/8"
150 m 110 m 65 m
