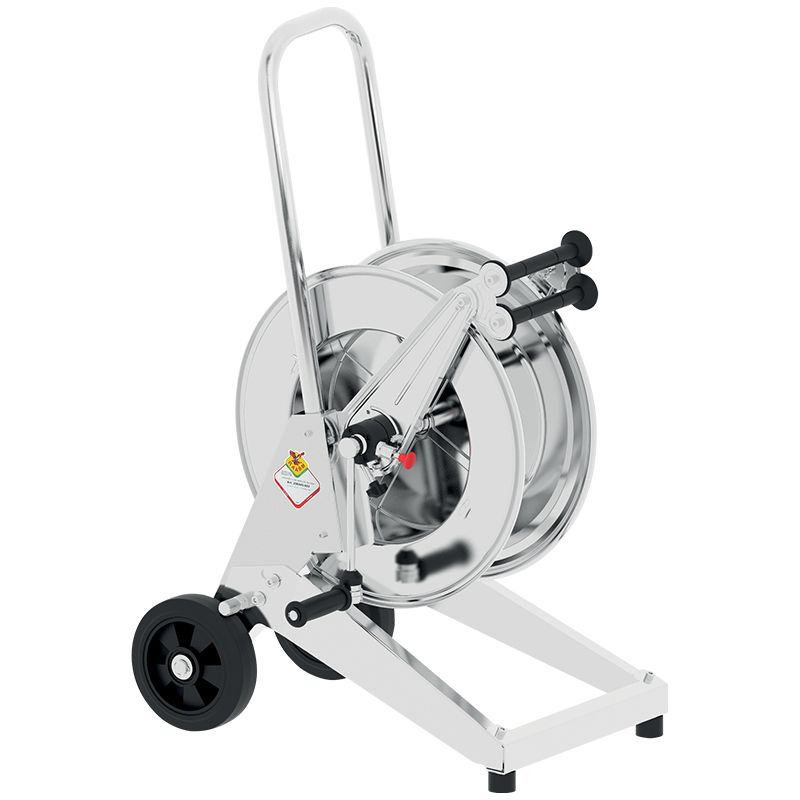

Manual trolley-mounted hose reel in AISI 304 stainless steel s. 540, for hot water, 200 bar, without hose. Inlet G 3/8" (f), outlet G 1/2" (f). Hose guide, safety system and rotation lock as standard
Pressure | 200 bar |
Compatible fluids | water max 130 °C |
Swivel joint | AISI 304 stainless steel |
Seals | Viton® |
Characteristic | trolley-mounted |
Material | AISI 304 stainless steel |
Couplings | - |
Hose | - |
ø and hose length | - |
Inlet | G 3/8" (f) |
Outlet | G 1/2" (f) |
Reel flow path | AISI 304 stainless steel |
ø 1/4" | ø 5/16" | ø 3/8" | ø 1/2" |
---|---|---|---|
150 m | 110 m | 65 m | 45 m |
