8530.400

P/N 8530.400

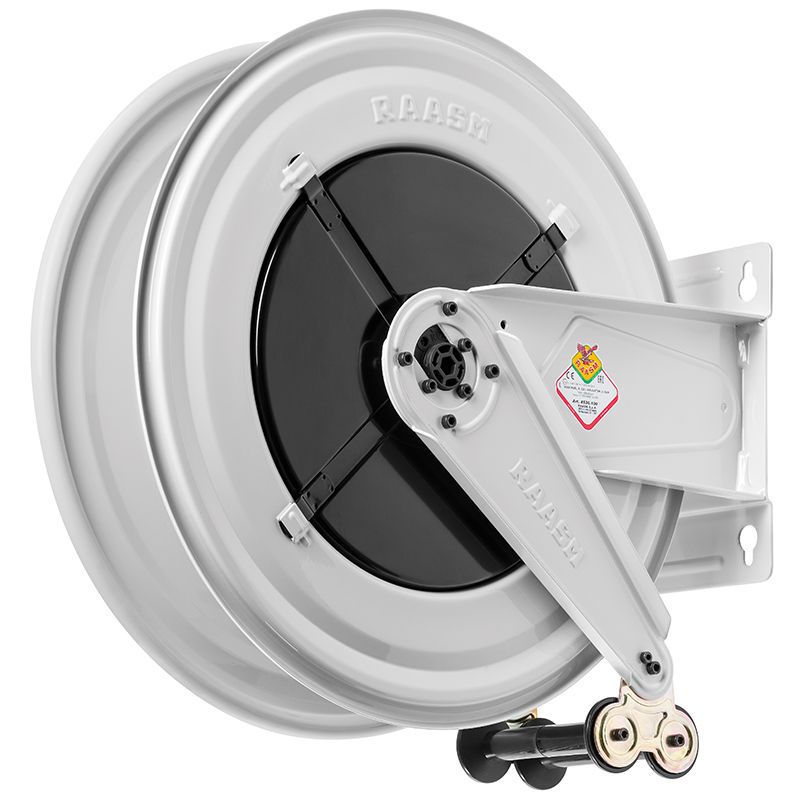

Fixed hose reel s. 530, for oil and similar, 150 bar, without hose. Inlet-outlet G 1/2" (f)

Features

Pressure 150 bar
Compatible fluids oils and similar products
Swivel joint zinc plated steel
Seals polyurethane
Characteristic fixed
Material painted steel
Couplings -
Hose -
ø and hose length -
Inlet G 1/2" (f)
Outlet G 1/2" (f)
Reel flow path zinc plated steel

Certifications

8530.400

Overall dimensions (mm)

8530.400

Hose reels capacity

ø 3/8" ø 1/2" ø 5/8"
25 m 25 m 22 m
