8530.352

P/N 8530.352

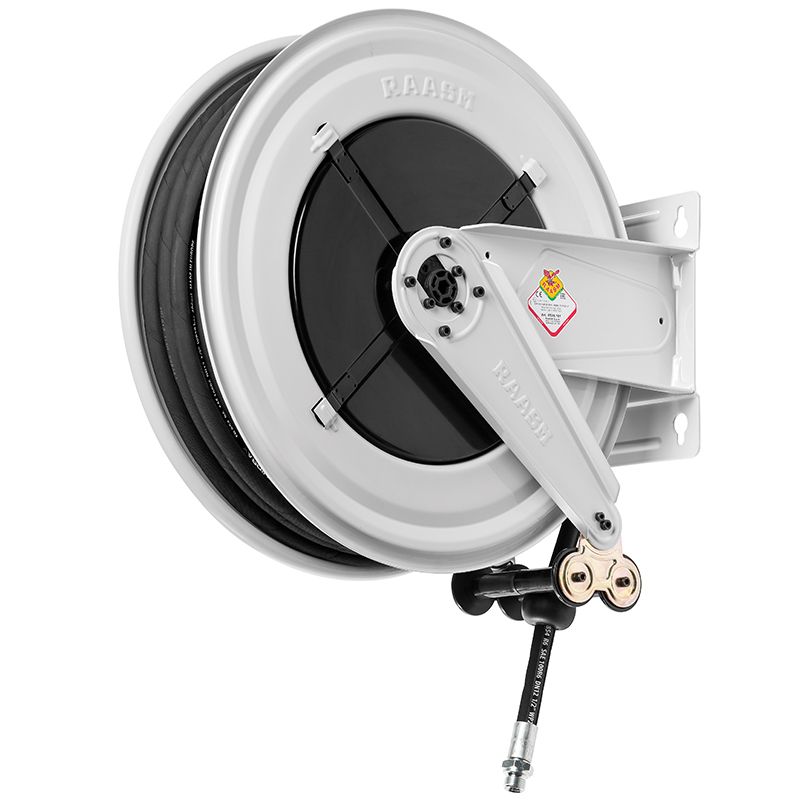

Fixed hose reel s. 530, for hot water, 400 bar, with black rubber hose 25 m, ø 3/8"

Features

Pressure 400 bar
Compatible fluids water max 130 °C
Swivel joint AISI 304 stainless steel
Seals Viton® and Teflon®
Characteristic fixed
Material painted steel
Couplings zinc plated steel
Hose p/n 995.825
ø and hose length ø 3/8" - 25 m
Inlet G 3/8" (f)
Outlet G 3/8" (f)
Reel flow path AISI 304 stainless steel - zinc plated steel

Certifications

8530.352

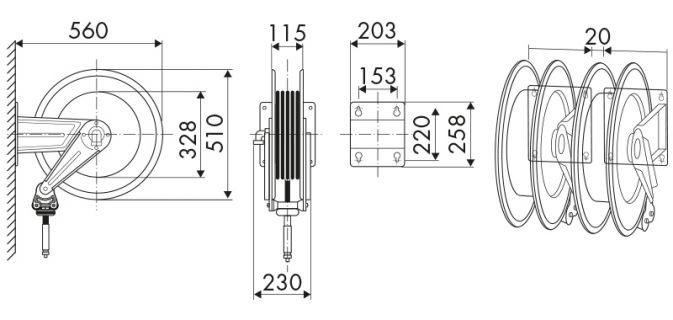

Overall dimensions (mm)

8530.352

This product is also available without hose

Go to product sheet
