8530.401

P/N 8530.401

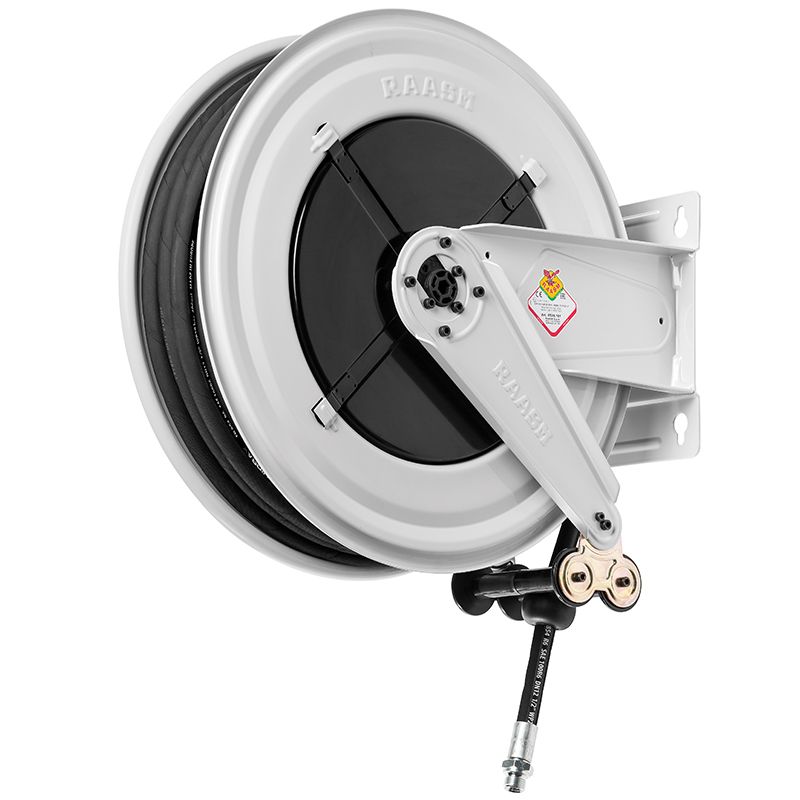

Fixed hose reel s. 530, for oil and similar, 150 bar, with black rubber hose 20 m, ø 1/2"

Features

Pressure 150 bar
Compatible fluids oils and similar products
Swivel joint zinc plated steel
Seals polyurethane
Characteristic fixed
Material painted steel
Couplings zinc plated steel
Hose p/n 996.320
ø and hose length ø 1/2" - 20 m
Inlet G 1/2" (f)
Outlet G 1/2" (m)
Reel flow path zinc plated steel

Certifications

8530.401

Overall dimensions (mm)

8530.401

This product is also available without hose
