8530.350

P/N 8530.350

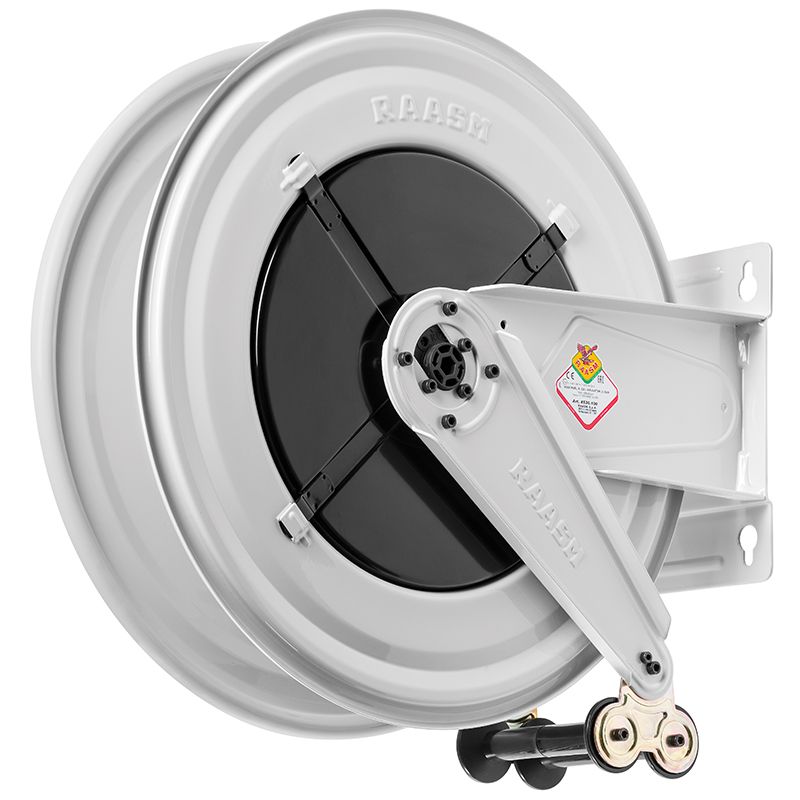

Fixed hose reel s. 530, for hot water, 400 bar, without hose. Inlet G 3/8" (f) - outlet G 1/2" (f)

Features

Pressure 400 bar
Compatible fluids water max 130 °C
Swivel joint AISI 304 stainless steel
Seals Viton® and Teflon®
Characteristic fixed
Material painted steel
Couplings -
Hose -
ø and hose length -
Inlet G 3/8" (f)
Outlet G 1/2" (f)
Reel flow path AISI 304 stainless steel - zinc plated steel

Certifications

8530.350

Overall dimensions (mm)

8530.350

Hose reels capacity

ø 3/8" ø 1/2"
25 m 25 m
