Product sheet
File PDF - 200 KB

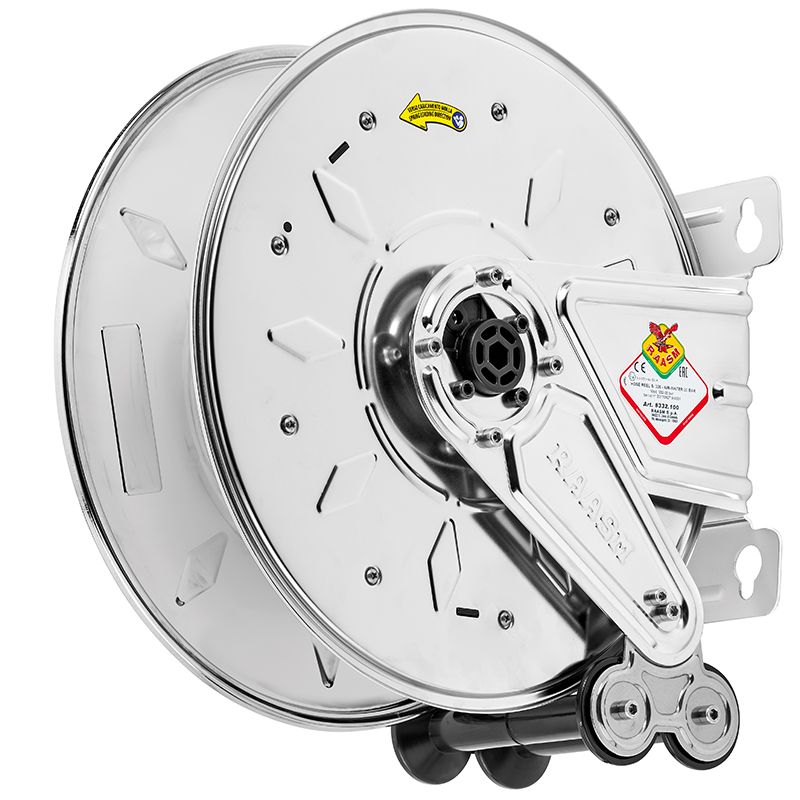

Fixed hose reel in AISI 304 stainless steel s. 330, for oil and similar, 100 bar, without hose. Inlet G 1/2" (f), outlet G 3/8" (f) - G 1/2" (f)
Pressure | 100 bar |
Compatible fluids | water max 130 °C |
Swivel joint | AISI 304 stainless steel |
Seals | Viton® |
Characteristic | fixed |
Material | AISI 304 stainless steel |
Couplings | - |
Hose | - |
ø and hose length | - |
Inlet | G 1/2" (f) |
Outlet | G 3/8" (f) - G 1/2" (f) |
Reel flow path | AISI 304 stainless steel |
ø 1/4" | ø 5/16" | ø 3/8" | ø 1/2" |
---|---|---|---|
12 m | 12 m | 12 m | 11 m |
