8332.401

P/N 8332.401

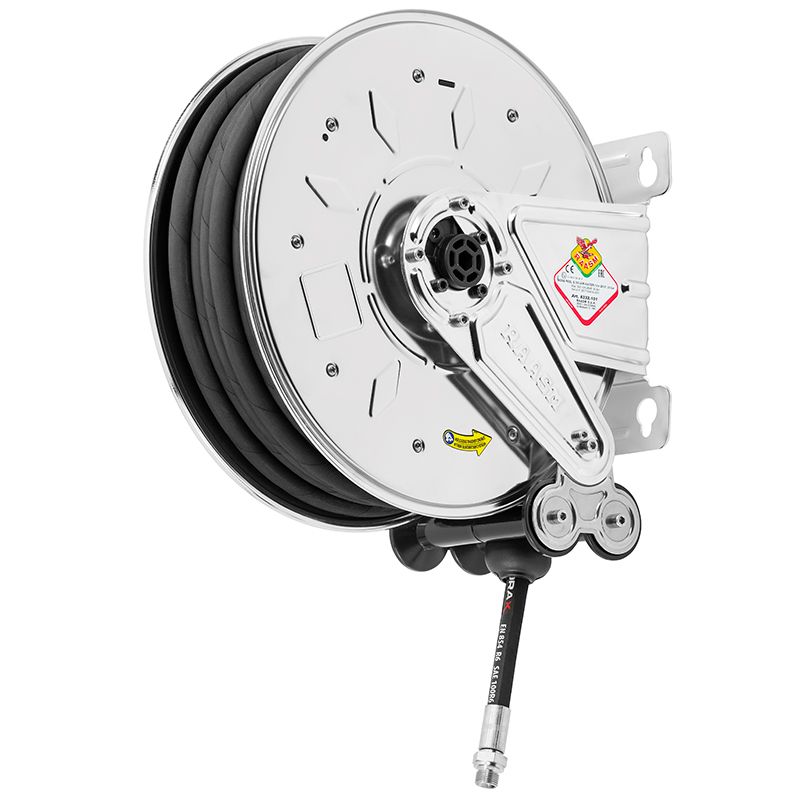

Fixed hose reel in AISI 304 stainless steel s. 330, for oil and similar, 150 bar, black rubber hose 8 m, ø 1/2"

Features

Pressure 100 bar
Compatible fluids oils and similar products
Swivel joint AISI 304 stainless steel
Seals polyurethane
Characteristic fixed
Material AISI 304 stainless steel
Couplings zinc plated steel
Hose p/n 996.308
ø and hose length ø 1/2" - 8 m
Inlet G 1/2" (f)
Outlet G 1/2" (m)
Reel flow path AISI 304 stainless steel

Certifications

8332.401

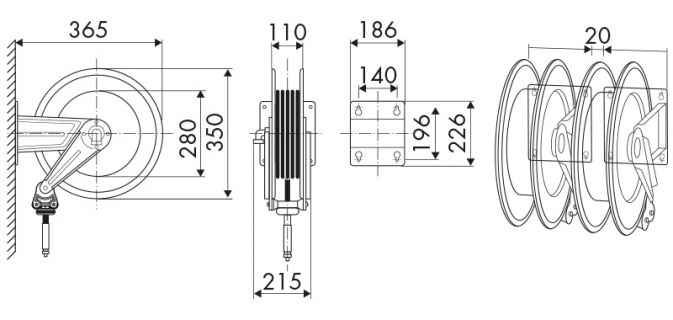

Overall dimensions (mm)

8332.401

This product is also available without hose

Go to product sheet
