7522001.400

P/N 7522001.400

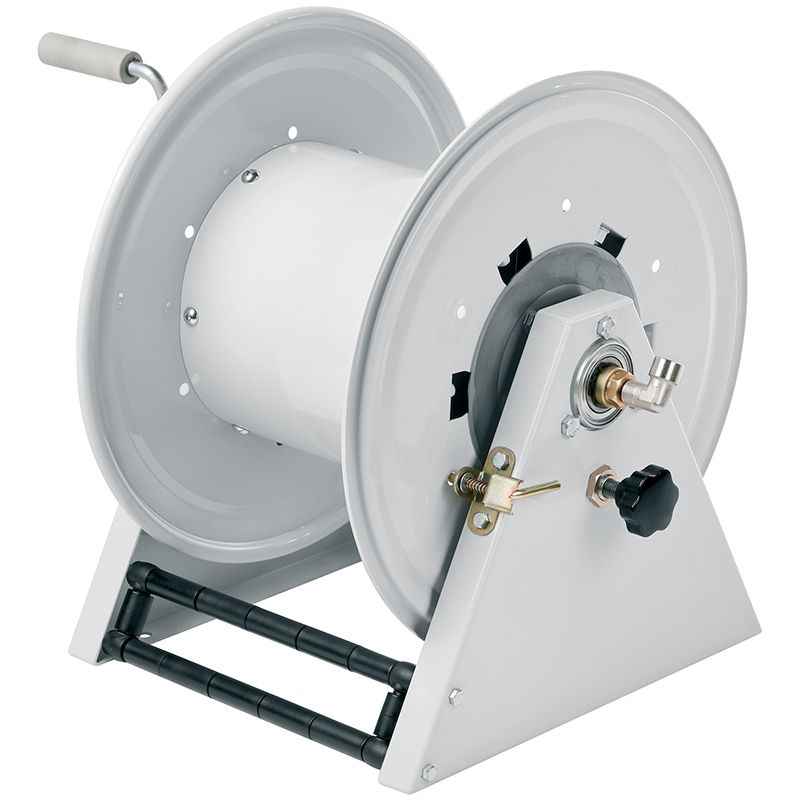

Manual hose reel s. 500, for oil and similar, 150 bar, without hose. Drum width 240 mm. Inlet-outlet G 1" (f)

Features

Pressure 150 bar
Compatible fluids oils and similar products
Swivel joint zinc plated steel
Seals polyurethane
Characteristic fixed
Material painted steel
Couplings -
Hose -
ø and hose length -
Inlet G 1" (f)
Outlet G 1" (f)
Reel flow path zinc plated steel

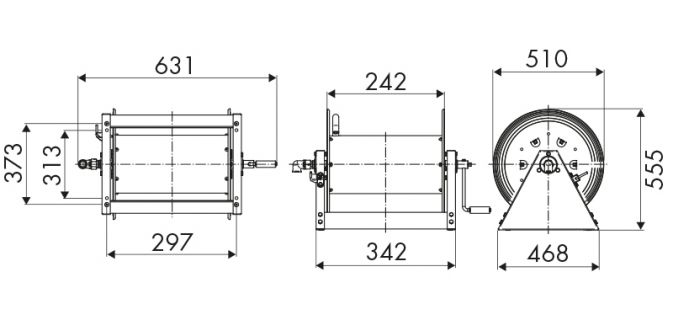

Overall dimensions (mm)

7522001.400

Hose reels capacity

ø 1/4" ø 3/8" ø 1/2" ø 3/4" ø 1"
130 m 85 m 65 m 30 m 20 m
