Product sheet
File PDF - 200 KB

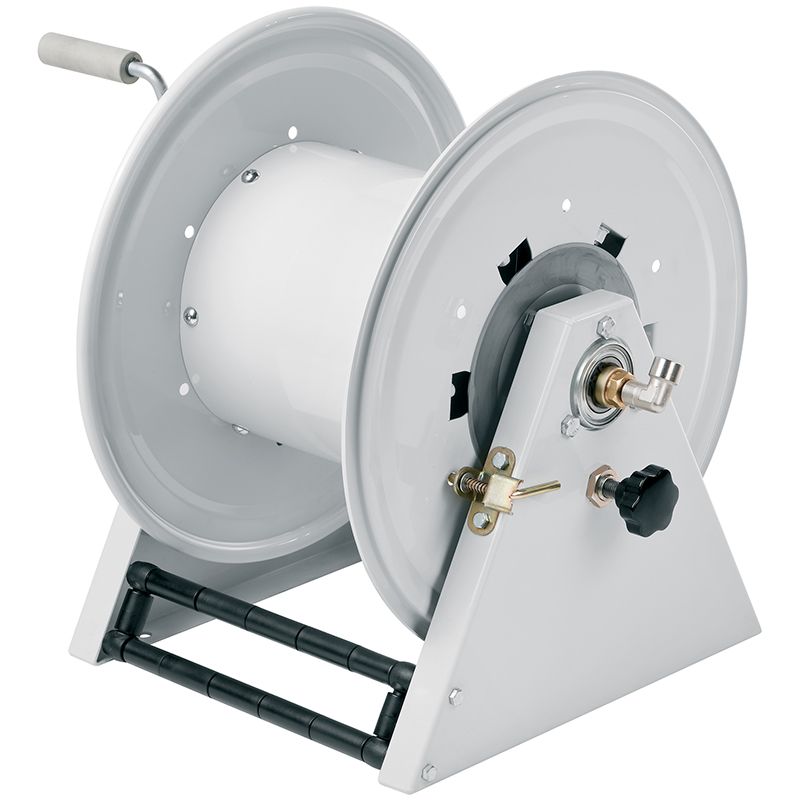

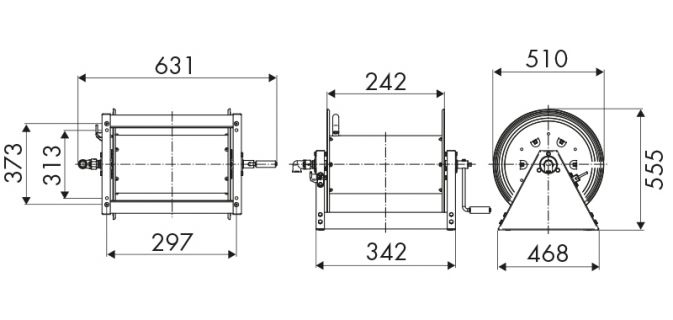

Manual hose reel s. 500, for air-water, 200 bar, without hose. Drum width 240 mm. Inlet G 3/8 (f) - outlet G 1/2 (f)
Pressure | 200 bar |
Compatible fluids | water max 130 °C |
Swivel joint | AISI 304 stainless steel |
Seals | Viton® |
Characteristic | fixed |
Material | painted steel |
Couplings | - |
Hose | - |
ø and hose length | - |
Inlet | G 3/8" (f) |
Outlet | G 1/2" (f) |
Reel flow path | AISI 304 stainless steel - zinc plated steel |
ø 1/4" | ø 3/8" | ø 1/2" | ø 3/4" | ø 1" |
---|---|---|---|---|
130 m | 85 m | 65 m | 30 m | 20 m |
