115D/181

P/N 115D/181

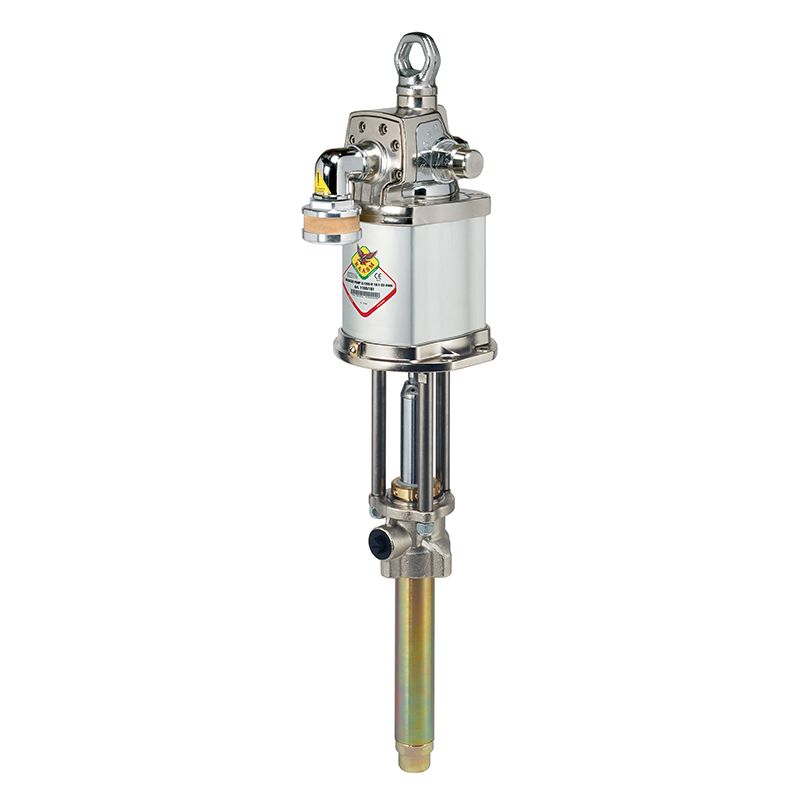

Modular divorced industrial pump s. 1200, R 18:1 - 23 l/min, with Teflon® seals

Features

Flow rate 23 l/min
Ratio 18:1
Compatible fluids chemical and industrial fluids
Suction tube upper body carbon steel
Suction tube carbon steel
Air inlet connection G 1/2" (f)
Fluid outlet connection G 3/4" (f)
Max supply pressure 8 bar
Max air consumption 8 bar 2,8 m3/min
Noise level 80 dB
Suitable for drums or tank modular
Packing No. 1 - 0,045 m3
Weight 14 kg

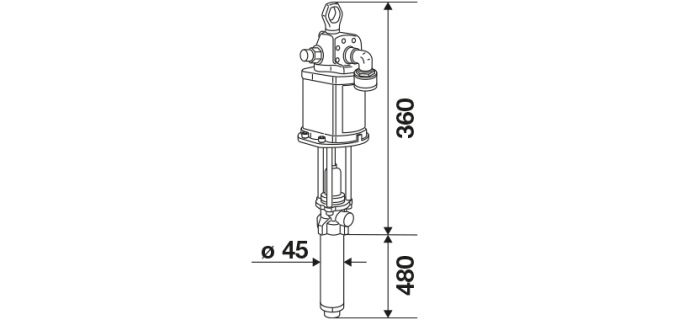

Overall dimensions (mm)

115D/181
