35330

P/N 35330

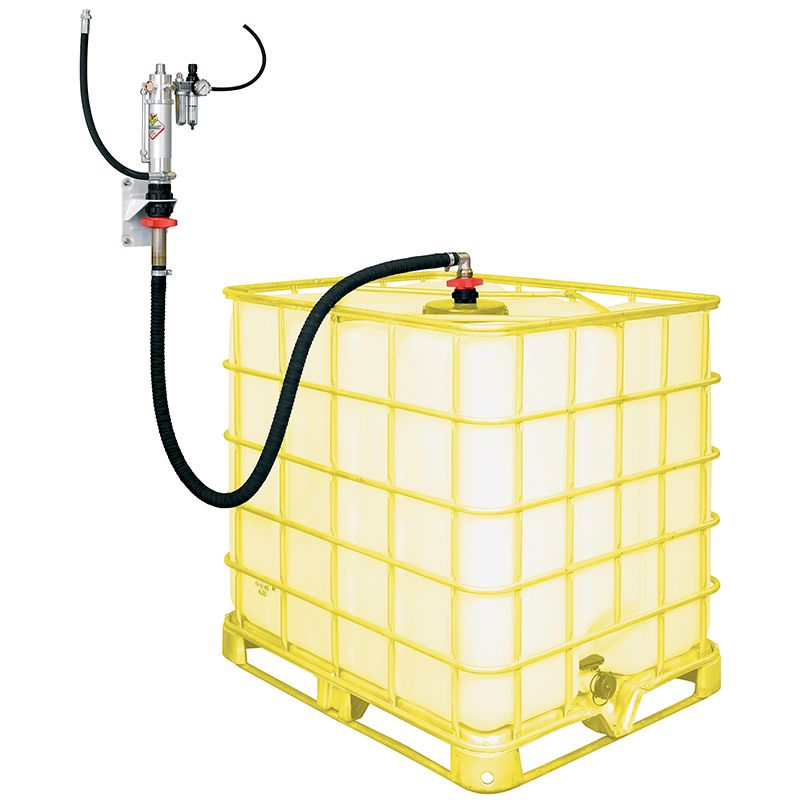

Wall mounted kit for tanks with piston pneumatic pump R 3:1 - 14 l/min, suction tube 1260 mm

Features

Ratio 3:1
Flow rate 14 l/min
Pump p/n 35160
Support bracket pump p/n 38043
Support bracket drip-tray -
Bung adaptor p/n 33434
Flexible suction tube p/n 38026
Rigid suction tube p/n 38055
Air hose connection p/n 993.201
Oil hose connection p/n 996.301
Tap p/n 38210
Nipple p/n 38071
Air regulator p/n 37812
Hose reels -
Oil gun with digital meter -
Drip-tray -
Packing No. 2 - 0,040 m3
Weight 15 kg

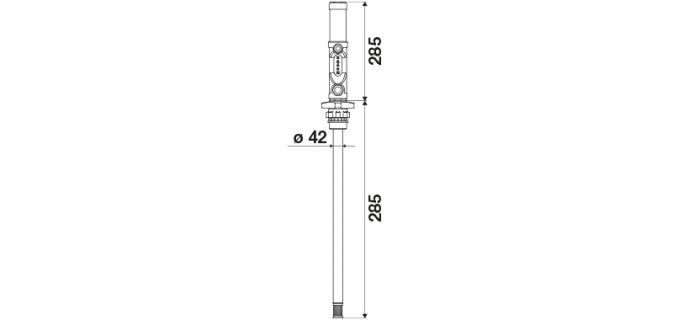

Overall dimensions (mm)

35330
