8333.351

P/N 8333.351

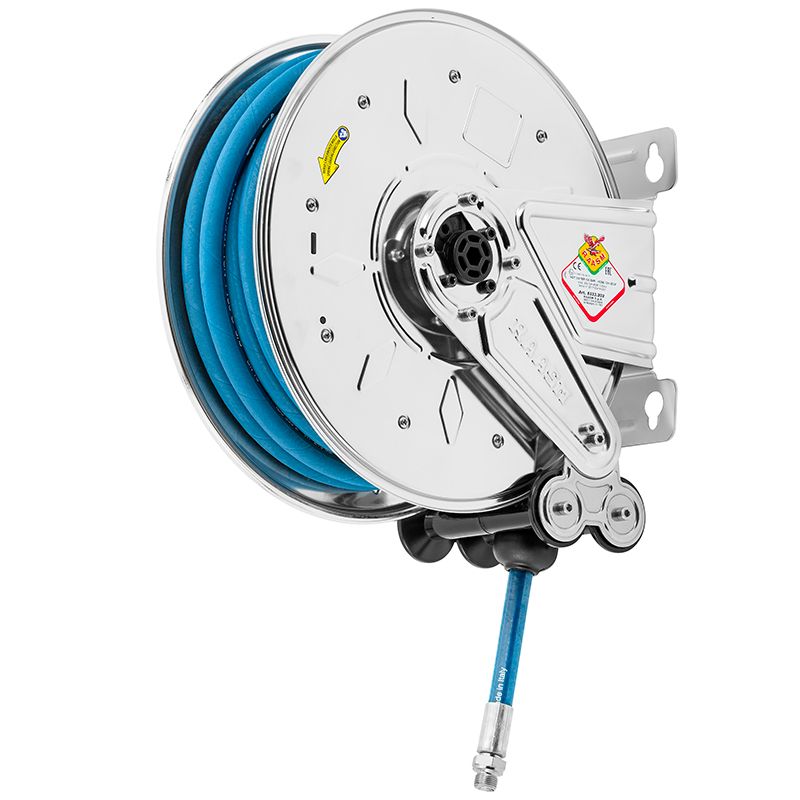

Fixed hose reel in AISI 304 stainless steel s. 330, for hot water, 400 bar, with hygienic hose 12 m, ø 5/16"

Features

Pressure 400 bar
Compatible fluids water max 130 °C
Swivel joint AISI 304 stainless steel
Seals Viton® and Teflon®
Characteristic fixed
Material AISI 304 stainless steel
Couplings zinc plated steel
Hose p/n 994.812
ø and hose length ø 5/16" - 12 m
Inlet G 3/8" (f)
Outlet G 3/8" (f)
Reel flow path AISI 304 stainless steel

Certifications

8333.351

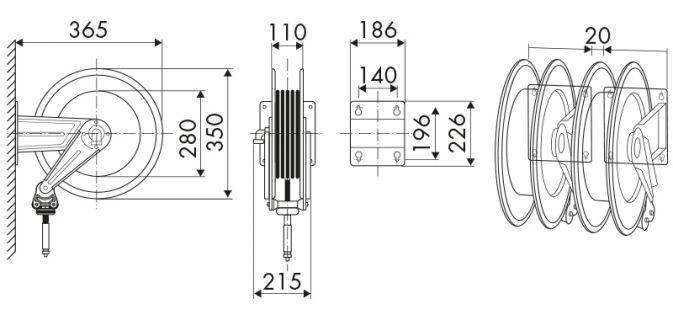

Overall dimensions (mm)

8333.351

This product is also available without hose

Go to product sheet
