8332.350

P/N 8332.350

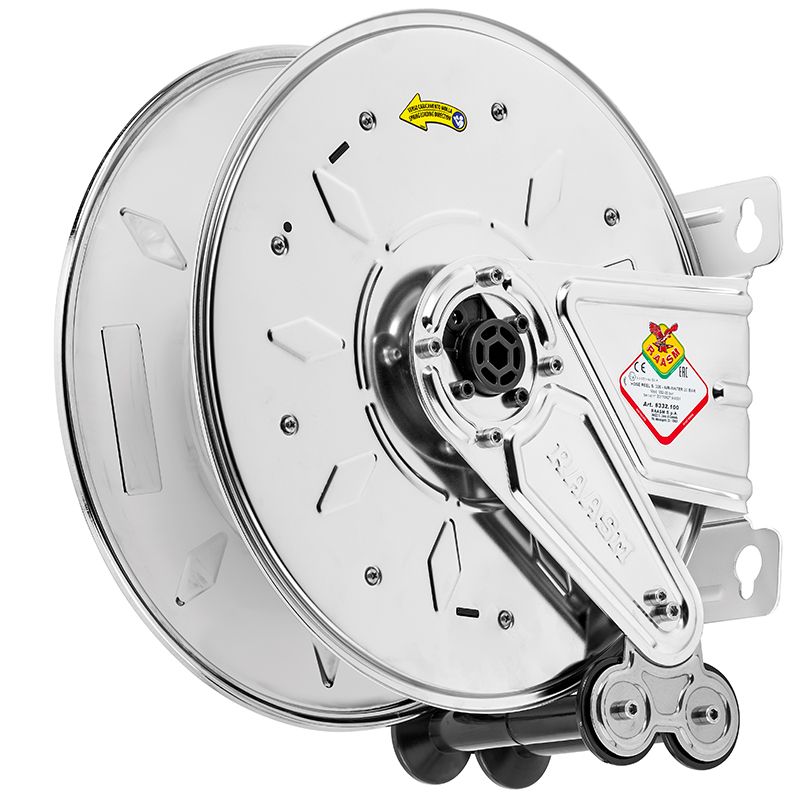

Fixed hose reel in AISI 304 stainless steel s. 330, for hot water, 400 bar, without hose. Inlet-outlet G 3/8" (f)

Features

Pressure 400 bar
Compatible fluids water max 130 °C
Swivel joint AISI 304 stainless steel
Seals Viton® and Teflon®
Characteristic fixed
Material AISI 304 stainless steel
Couplings -
Hose -
ø and hose length -
Inlet G 3/8" (f)
Outlet G 3/8" (f)
Reel flow path AISI 304 stainless steel

Certifications

8332.350

Overall dimensions (mm)

8332.350

Hose reels capacity

ø 1/4" ø 5/16" ø 3/8" ø 1/2"
12 m 12 m 12 m 8 m
