8292.102

P/N 8292.102

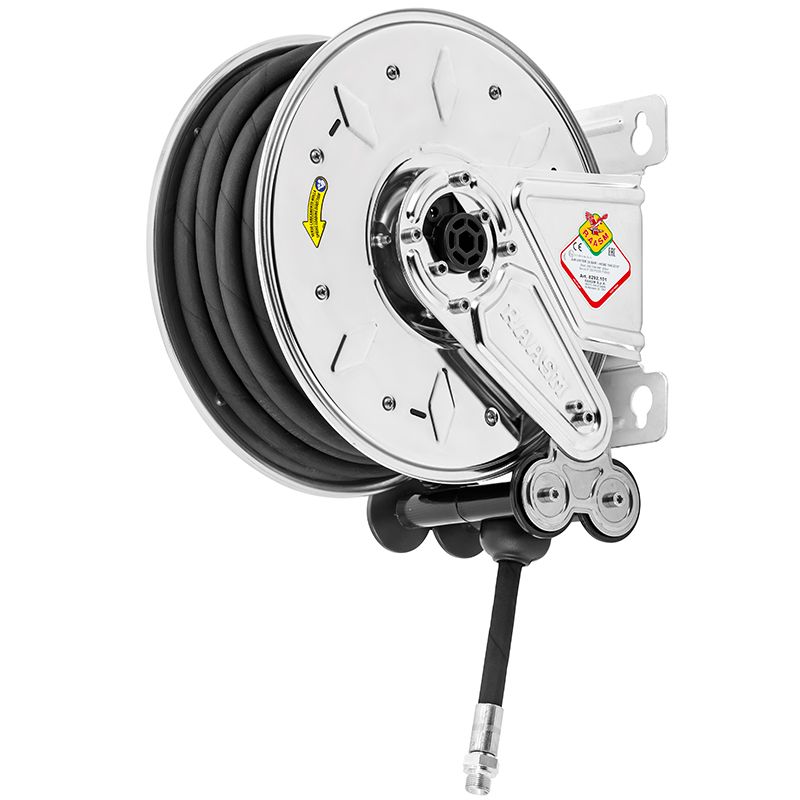

Fixed hose reel in AISI 304 stainless steel s. 290, for air-water, 20 bar, with polyurethane hose 13 m, ø 10x14.5 mm

Features

Pressure 20 bar
Compatible fluids air - water
Swivel joint brass
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel
Couplings zinc plated steel
Hose p/n 972.113
ø and hose length ø 10x14.5 - 13 m
Inlet G 3/8" (f)
Outlet G 3/8" (m)
Reel flow path brass - AISI 304 stainless steel

Certifications

8292.102

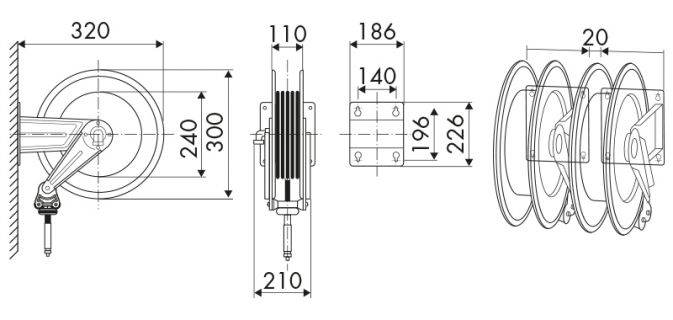

Overall dimensions (mm)

8292.102

This product is also available without hose

Go to product sheet
