8292.101

P/N 8292.101

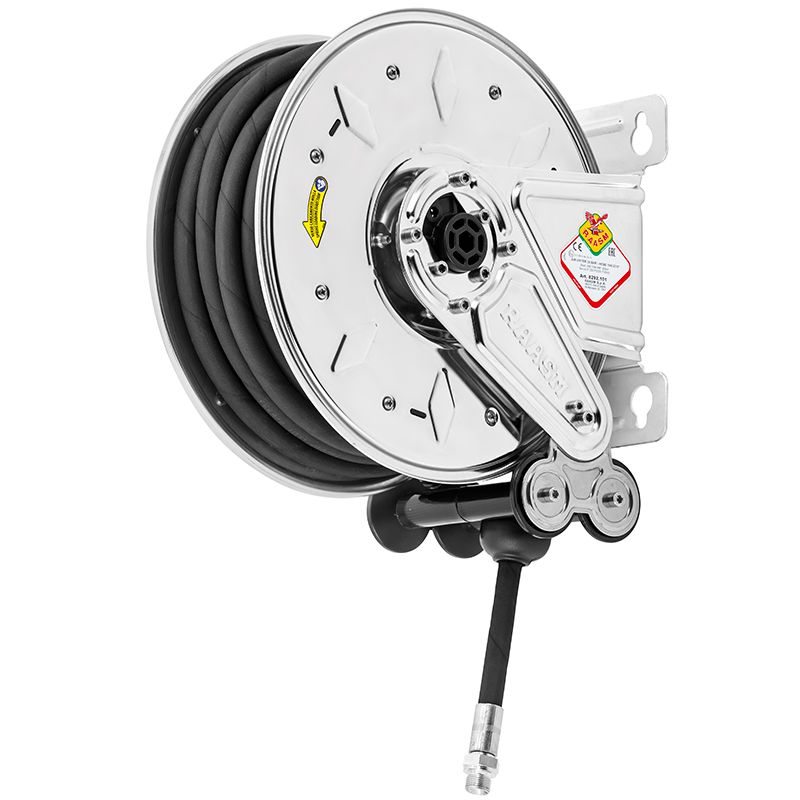

Fixed hose reel in AISI 304 stainless steel s. 290, for air-water, 20 bar, with black rubber hose 10 m, ø 3/8"

Features

Pressure 20 bar
Compatible fluids air - water
Swivel joint brass
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel
Couplings zinc plated steel
Hose p/n 995.210
ø and hose length ø 3/8" - 10 m
Inlet G 3/8" (f)
Outlet G 3/8" (m)
Reel flow path brass - AISI 304 stainless steel

Certifications

8292.101

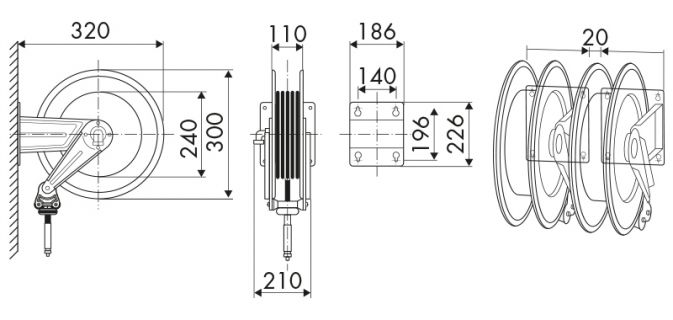

Overall dimensions (mm)

8292.101

This product is also available without hose

Go to product sheet
