7853001.6000

P/N 7853001.6000

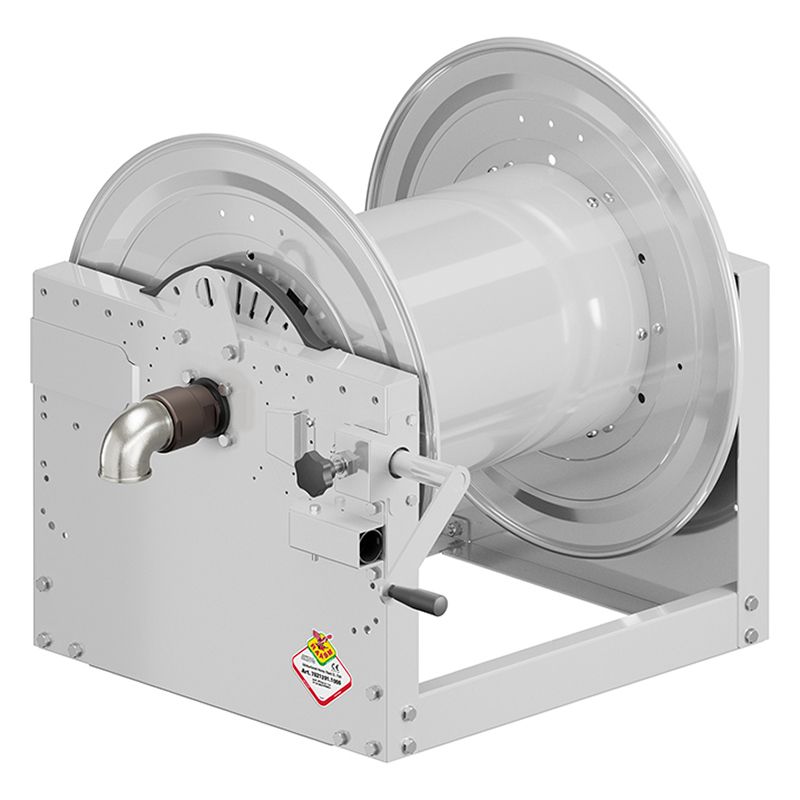

Manual hose reel in painted steel s. 700, for air-water, 70 bar, without hose. Drum width 550 mm. Inlet-outlet G 2" (f) with reel flow path in AISI 316 stainless steel

Features

Pressure 70 bar
Compatible fluids air - water
Swivel joint AISI 316 stainless steel
Seals Viton®
Characteristic manual
Material painted steel
Couplings -
Hose -
ø and hose length -
Inlet G 2" (f)
Outlet G 2" (f)
Reel flow path AISI 316 stainless steel

Certifications

7853001.6000

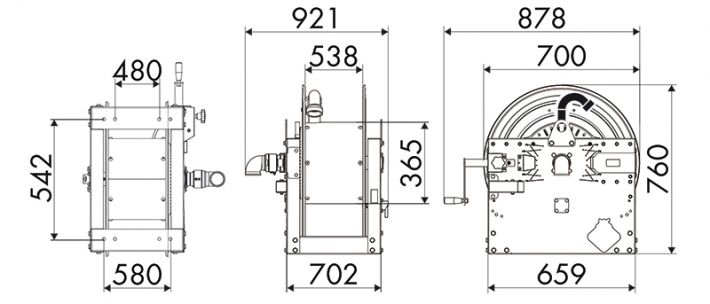

Overall dimensions (mm)

7853001.6000

Hose reels capacity

ø 3/8" ø 1/2" ø 3/4" ø 1" ø 1,1/4" ø 1,1/2" ø 2"
550 m 350 m 244 m 134 m 84 m 75 m 43 m
