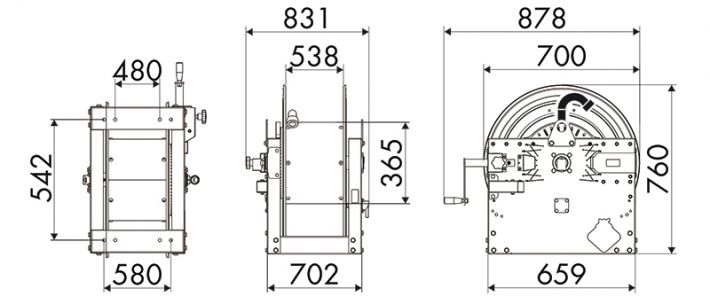

Manual hose reel in painted steel s. 700, for air-water, 100 bar, without hose. Drum width 550 mm. Inlet-outlet G 1" (f) with reel flow path in AISI 316 stainless steel
Pressure | 100 bar |
Compatible fluids | air - water |
Swivel joint | AISI 316 stainless steel |
Seals | Viton® |
Characteristic | manual |
Material | painted steel |
Couplings | - |
Hose | - |
ø and hose length | - |
Inlet | G 1" (f) |
Outlet | G 1" (f) |
Reel flow path | AISI 316 stainless steel |
ø 3/8" | ø 1/2" | ø 3/4" | ø 1" | ø 1,1/4" | ø 1,1/2" | ø 2" |
---|---|---|---|---|---|---|
550 m | 350 m | 244 m | 134 m | 84 m | 75 m | 43 m |
