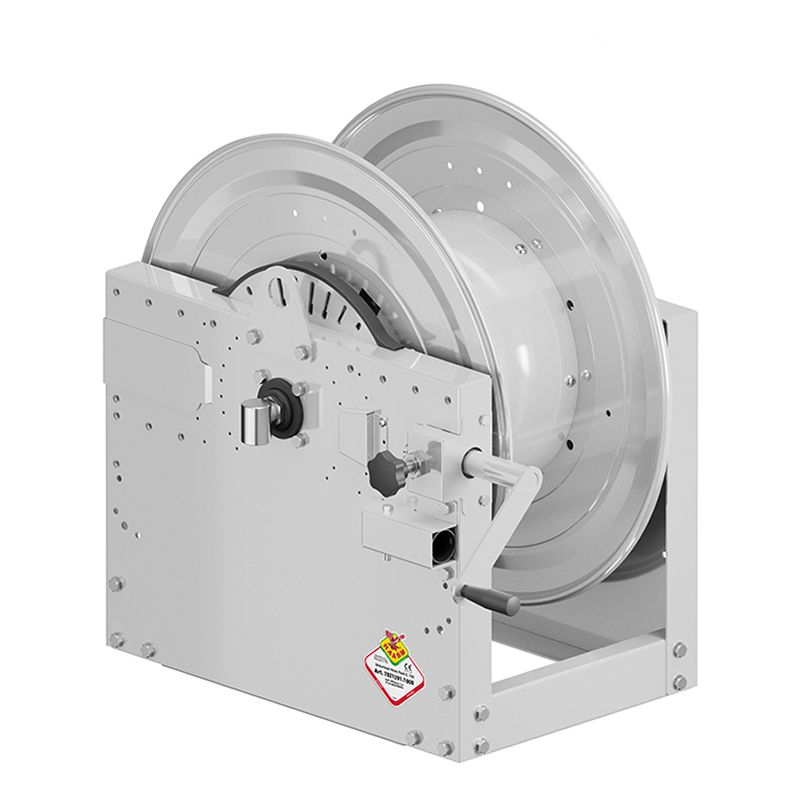

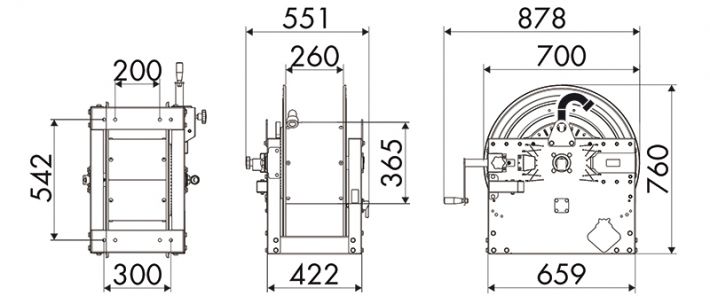

Manual hose reel in painted steel s. 700, for air-water, 100 bar, without hose. Drum width 270 mm. Inlet-outlet G 1" (f) with reel flow path in AISI 316 stainless steel
Pressure | 100 bar |
Compatible fluids | air - water |
Swivel joint | AISI 316 stainless steel |
Seals | Viton® |
Characteristic | manual |
Material | painted steel |
Couplings | - |
Hose | - |
ø and hose length | - |
Inlet | G 1" (f) |
Outlet | G 1" (f) |
Reel flow path | AISI 316 stainless steel |
ø 3/8" | ø 1/2" | ø 3/4" | ø 1" | ø 1,1/4" | ø 1,1/2" | ø 2" |
---|---|---|---|---|---|---|
160 m | 110 m | 65 m | 30 m | 20 m | 15 m | 10 m |
