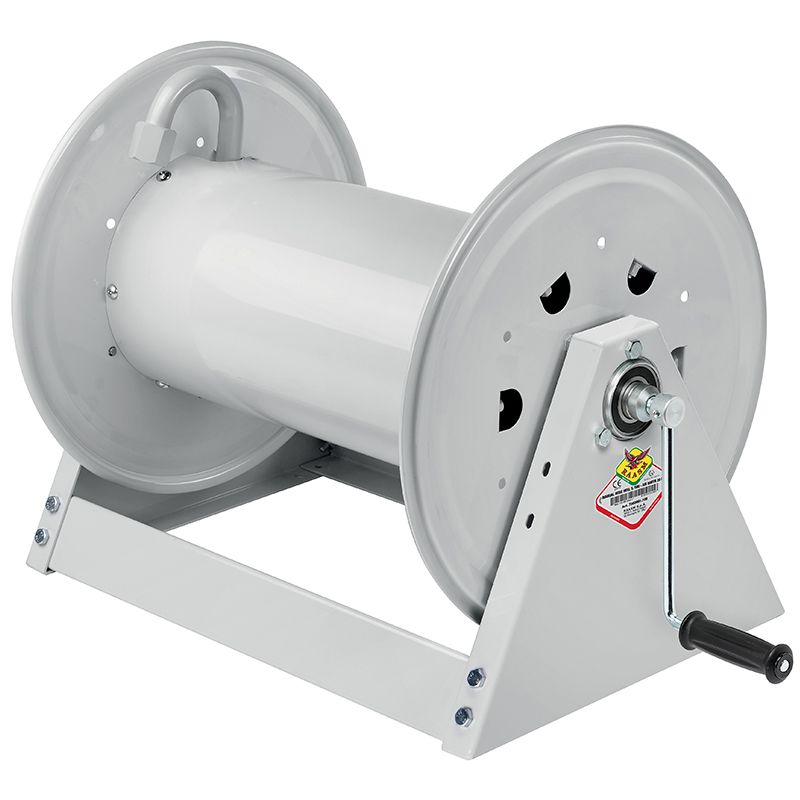

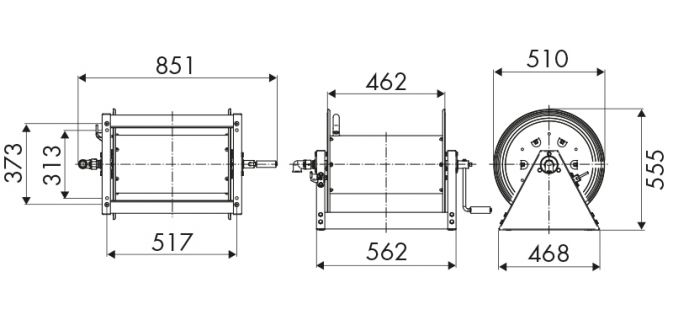

Manual hose reel s. 500, for oil and similar, 20 bar, without hose. Drum width 460 mm. Inlet-outlet G 1" (f)
Pressure | 10 - 20 bar |
Compatible fluids | air - water - diesel fuel |
Swivel joint | brass |
Seals | Viton® |
Characteristic | fixed |
Material | painted steel |
Couplings | - |
Hose | - |
ø and hose length | - |
Inlet | G 1" (f) |
Outlet | G 1" (f) |
Reel flow path | brass - zinc plated steel |
ø 1/4" | ø 3/8" | ø 1/2" | ø 3/4" | ø 1" |
---|---|---|---|---|
300 m | 200 m | 150 m | 80 m | 50 m |
