75400.405

P/N 75400.405

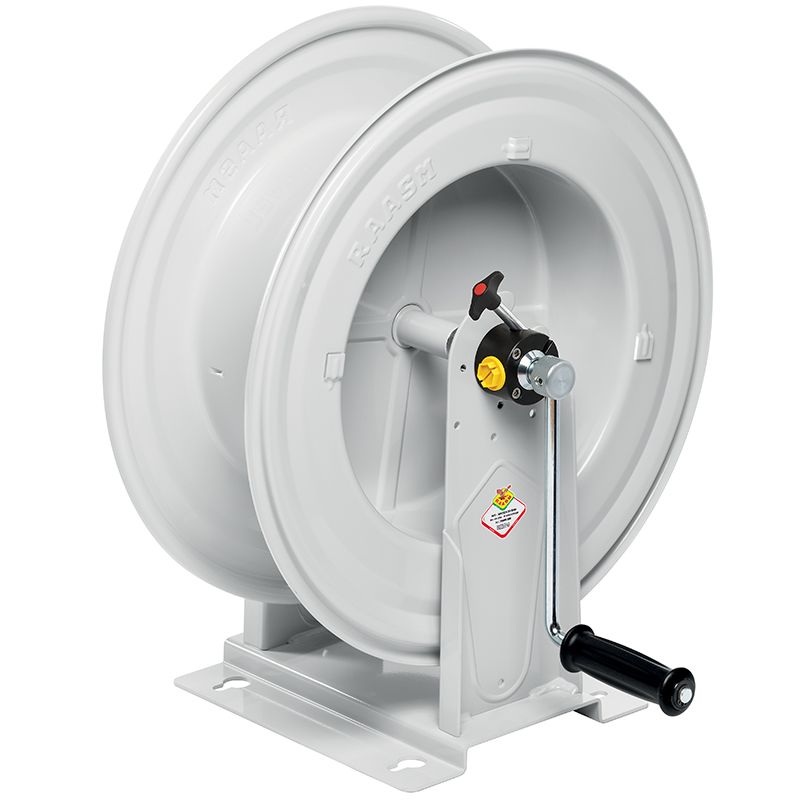

Manual hose reel s. 540, for oil and similar, 150 bar, without hose. Inlet-outlet G 1/2" (f)

Features

Pressure 150 bar
Compatible fluids oils and similar products
Swivel joint zinc plated steel
Seals polyurethane
Characteristic fixed
Material painted steel
Couplings -
Hose -
ø and hose length -
Inlet G 1/2" (f)
Outlet G 1/2" (f)
Reel flow path zinc plated steel

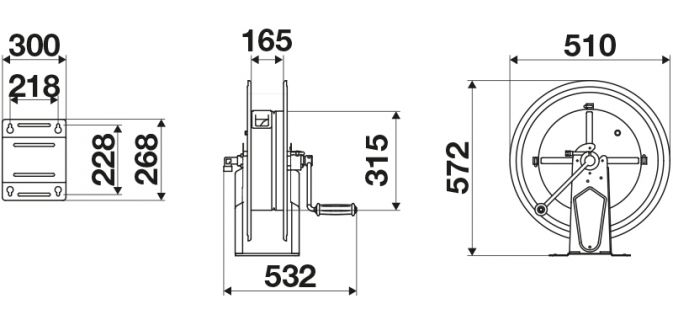

Overall dimensions (mm)

75400.405

Hose reels capacity

ø 1/4" ø 5/16" ø 3/8" ø 1/2" ø 5/8" ø 3/4" ø 1"
150 m 110 m 65 m 45 m 35 m 25 m 15 m
