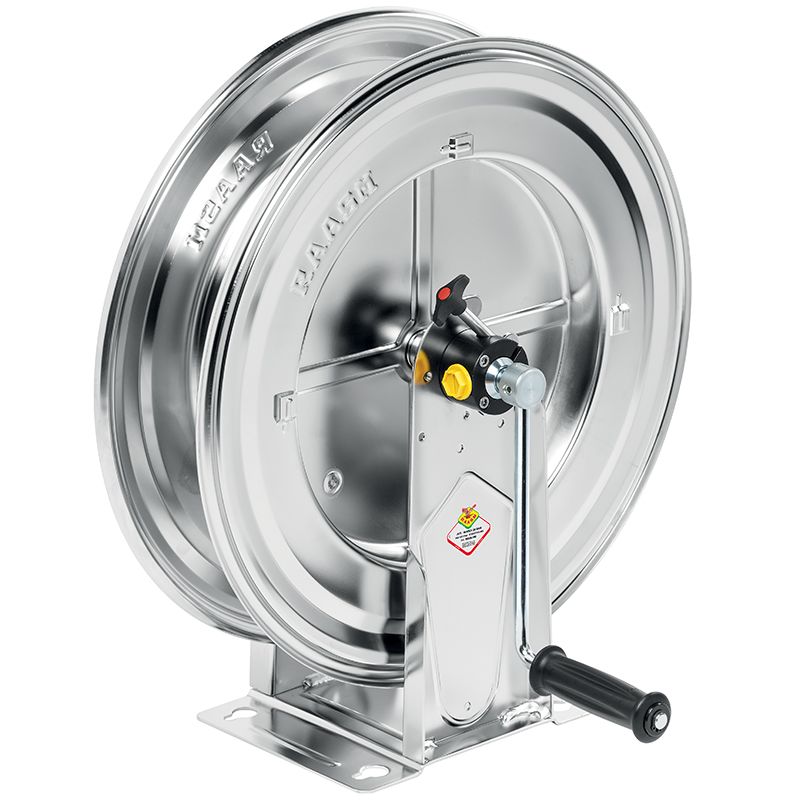

Manual hose reel in AISI 304 stainless steel s. 530, for diesel, 10 bar, without hose. Inlet-outlet G 1" (f)
Pressure | 10 bar |
Compatible fluids | diesel fuel |
Swivel joint | brass |
Seals | Viton® |
Characteristic | fixed |
Material | AISI 304 stainless steel |
Couplings | - |
Hose | - |
ø and hose length | - |
Inlet | G 1" (f) |
Outlet | G 1" (f) |
Reel flow path | brass - AISI 304 stainless steel |
ø 1/4" | ø 5/16" | ø 3/8" | ø 1/2" | ø 5/8" | ø 3/4" | ø 1" |
---|---|---|---|---|---|---|
90 m | 65 m | 35 m | 25 m | 20 m | 15 m | 7 m |
