Product sheet
File PDF - 200 KB

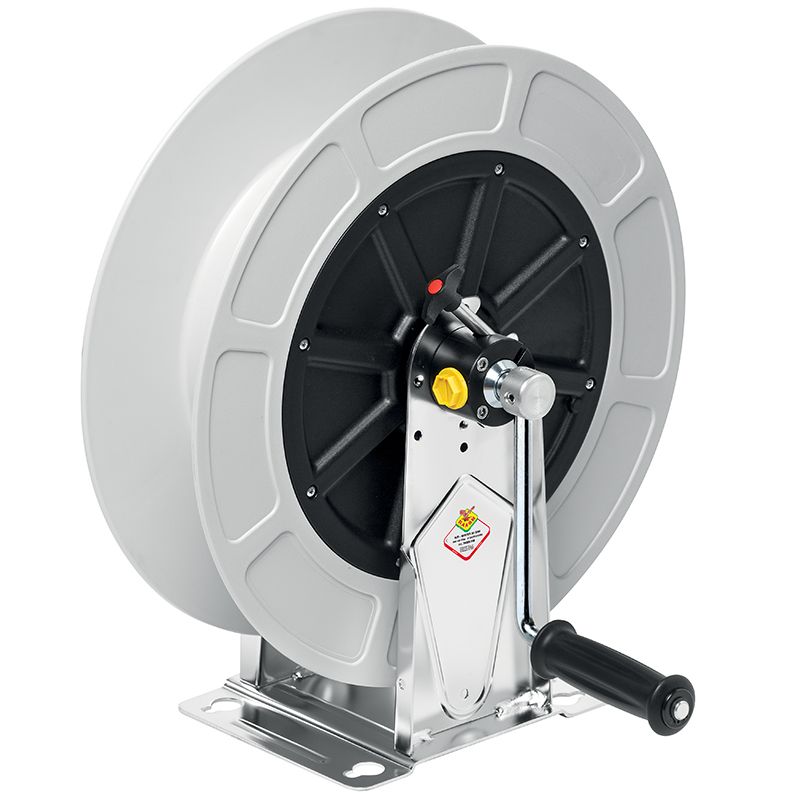

AISI 304 stainless steel manual hose reel with ABS drum s. 430, for diesel, 10 bar, without hose. Inlet G 1/2" (f), outlet G 1/2" (f)
Pressure | 10 bar |
Compatible fluids | diesel fuel |
Swivel joint | brass |
Seals | Viton® |
Characteristic | fixed |
Material | AISI 304 stainless steel with ABS drum |
Couplings | - |
Hose | - |
ø and hose length | - |
Inlet | G 1/2" (f) |
Outlet | G 1/2" (m) |
Reel flow path | brass - AISI 304 stainless steel |
ø 1/4" | ø 5/16" | ø 3/8" | ø 1/2" | ø 5/8" |
---|---|---|---|---|
50 m | 35 m | 25 m | 17 m | 15 m |
