Product sheet
File PDF - 200 KB

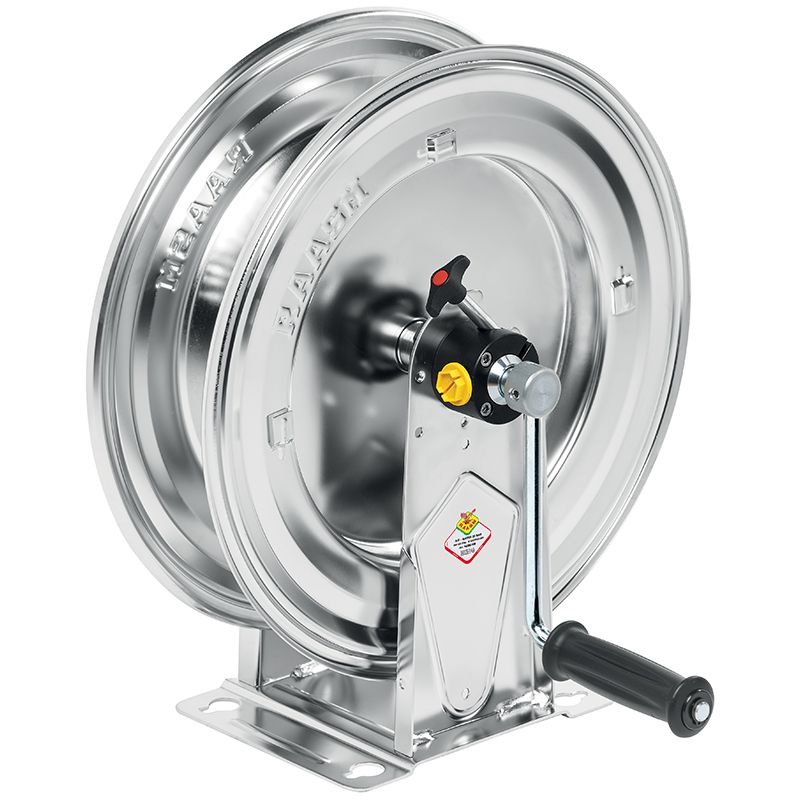

Manual hose reel in AISI 304 stainless steel s. 430, for air-water, 20 bar, without hose. Inlet G 1" (f), outlet G 3/4" (f)
Pressure | 20 bar |
Compatible fluids | air - water |
Swivel joint | brass |
Seals | Viton® |
Characteristic | fixed |
Material | AISI 304 stainless steel |
Couplings | - |
Hose | - |
ø and hose length | - |
Inlet | G 1" (f) |
Outlet | G 3/4" (f) |
Reel flow path | brass - AISI 304 stainless steel |
ø 1/4" | ø 5/16" | ø 3/8" | ø 1/2" | ø 5/8" | ø 3/4" |
---|---|---|---|---|---|
50 m | 35 m | 25 m | 17 m | 15 m | 8 m |
