2B3/16117HH5

P/N 2B3/16117HH5

Diaphragm pump in aluminum and polypropylene series APPB-12 with multi ported inlet/outlet, membranes and balls in Hytrel® and seats in AISI 316 stainless steel and polypropylene

Features

Flow rate 60 l/min
Ratio 1:1
Max pressure 8 bar
Max cicles for minute 330 cpm
Delivery for cicles 0,188 l
Max suction lift dry column 4,5 m - wet column 7,5 m
Max size pumpable solids 1,5 mm
Max working temperature 65 °C
Noise level 75 dB
Max air consumption 0,50 m3/min
Air working pressure 2 ÷ 6 bar
Air inlet connection G 3/8" (f)
Air outlet connection (muffler) G 1/2" (f)
Fluid inlet connection G 3/4" (f) (G 1" (f) for drum)
Fluid outlet connection G 1/2" (f)
Balls for inlet cylindrical ball valve
Membranes Hytrel®
Balls Hytrel®
Seats polypropylene and AISI 316 stainless steel
Packing No. 1 - 0,02 m3
Gross weight 5,8 kg

Certifications

2B3/16117HH5

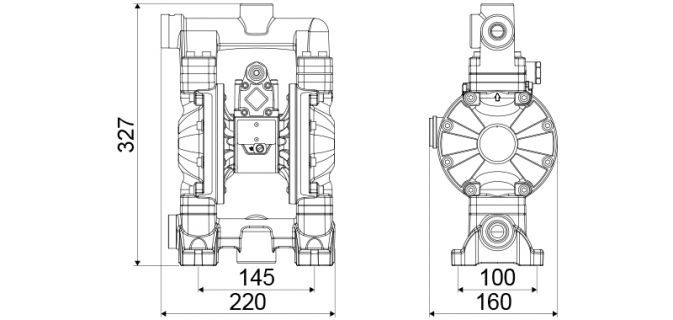

Overall dimensions (mm)

2B3/16117HH5
