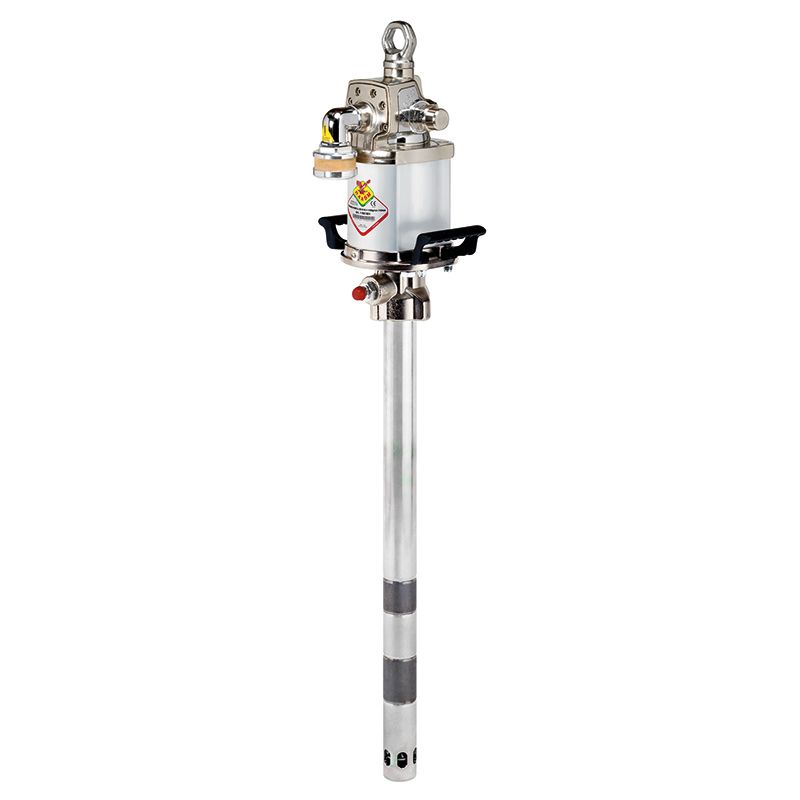

Flanged industrial pump s. 1200, R 75:1 - 4400 g/min, with PU seals. Suitable for ram hoists
Flow rate | 4400 g/min |
Ratio | 75:1 |
Compatible fluids | high viscosity oils and greases |
Suction tube upper body | carbon steel |
Suction tube | carbon steel |
Air inlet connection | G 1/2" (f) |
Fluid outlet connection | G 1/2" (f) |
Max supply pressure | 8 bar |
Max air consumption 8 bar | 1,6 m3/min |
Noise level | 80 dB |
Suitable for drums or tank | ram hoist 18 ÷ 30 kg |
Packing | No. 1 - 0,045 m3 |
Weight | 18 kg |
