8560.603

P/N 8560.603

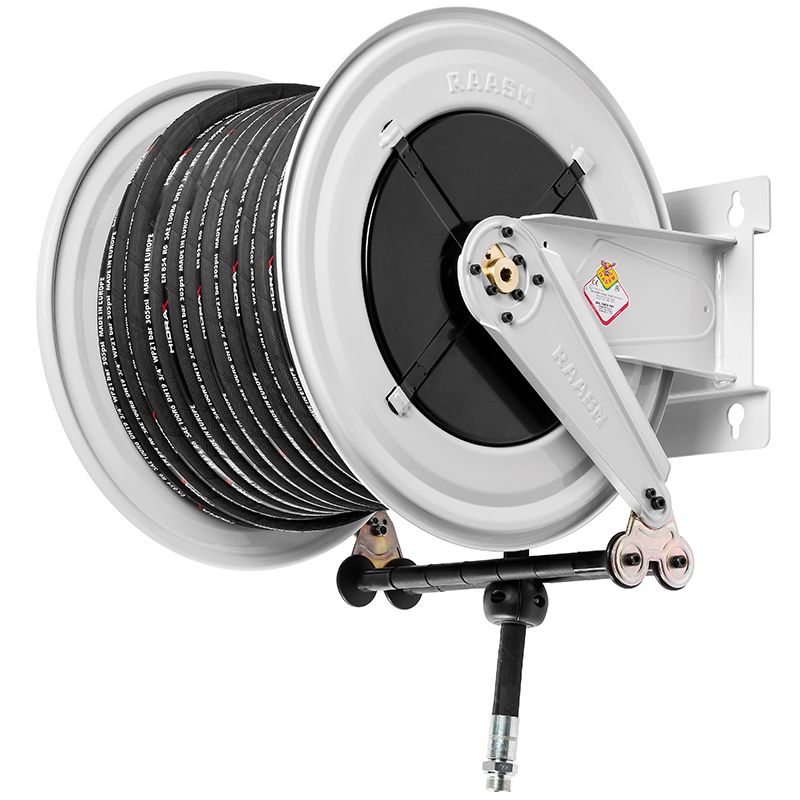

Fixed hose reel s. 560, for diesel, 10 bar, with black antistatic rubber hose 40 m, ø 3/4"

Features

Pressure 10 bar
Compatible fluids diesel fuel
Swivel joint brass
Seals Viton®
Characteristic fixed
Material painted steel
Couplings zinc plated steel
Hose p/n 997.840
ø and hose length ø 3/4" - 40 m
Inlet G 1" (f)
Outlet G 3/4" (m)
Reel flow path brass - zinc plated steel

Certifications

8560.603

Overall dimensions (mm)

8560.603

This product is also available without hose
