8560.407

P/N 8560.407

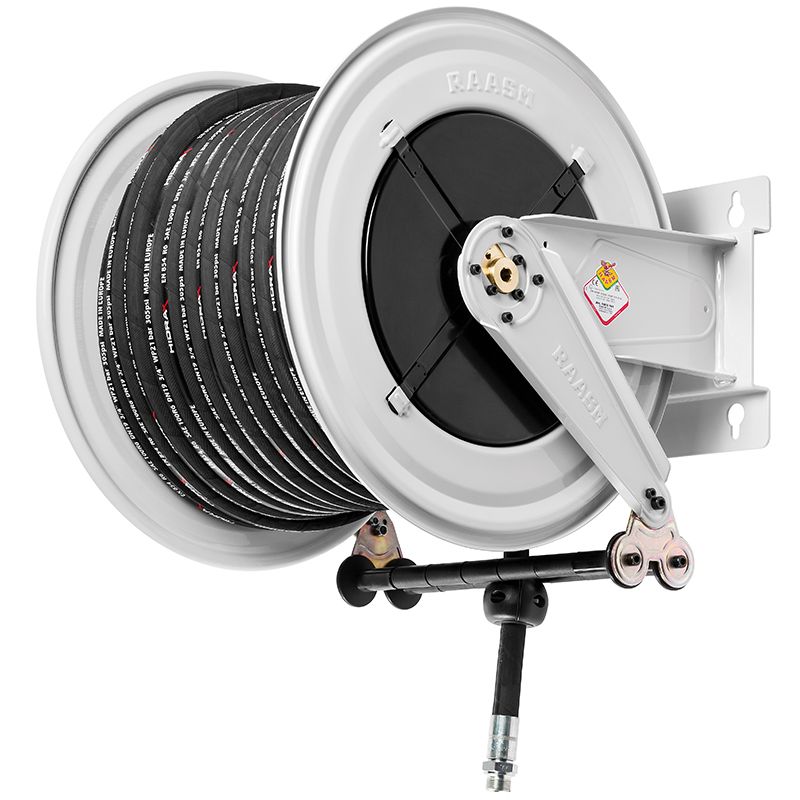

Fixed hose reel s. 560, for oil and similar, 150 bar, with black rubber hose 40 m, ø 1/2"

Features

Pressure 150 bar
Compatible fluids oils and similar products
Swivel joint zinc plated steel
Seals polyurethane
Characteristic fixed
Material painted steel
Couplings zinc plated steel
Hose p/n 996.340
ø and hose length ø 1/2" - 40 m
Inlet G 1/2" (f)
Outlet G 1/2" (m)
Reel flow path zinc plated steel

Certifications

8560.407

Overall dimensions (mm)

8560.407

This product is also available without hose

Go to product sheet
