8560.206

P/N 8560.206

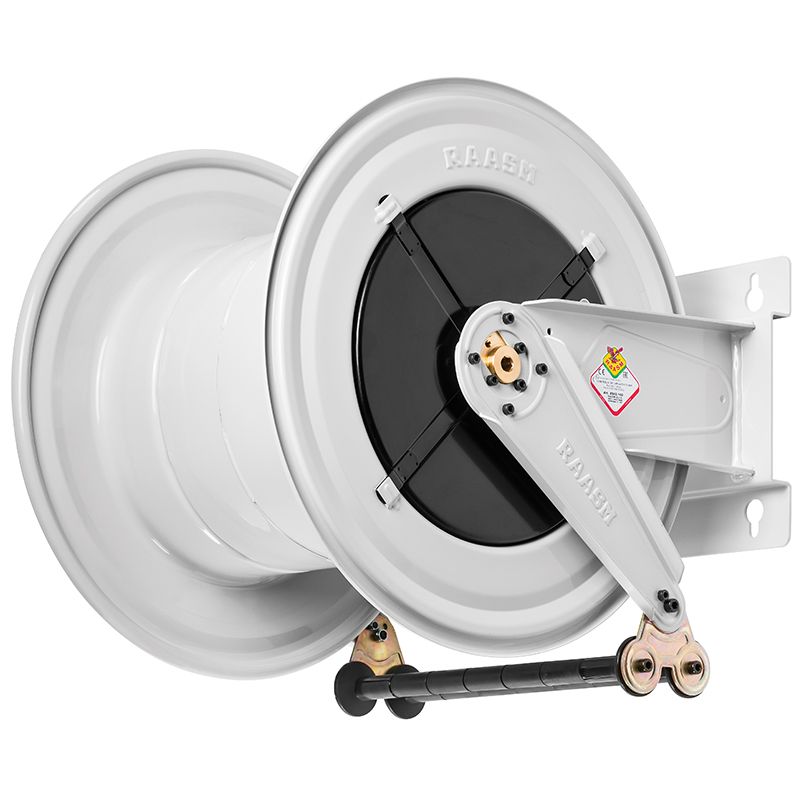

Fixed hose reel s. 560, for hot water, 100 bar, without hose. Inlet-outlet G 1/2" (f)

Features

Pressure 100 bar
Compatible fluids water max 130 °C
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic fixed
Material painted steel
Couplings -
Hose -
ø and hose length -
Inlet G 1/2" (f)
Outlet G 1/2" (f)
Reel flow path AISI 304 stainless steel - zinc plated steel

Certifications

8560.206

Overall dimensions (mm)

8560.206

Hose reels capacity

ø 3/8" ø 1/2" ø 5/8"
60 m 60 m 60 m
