8560.201

P/N 8560.201

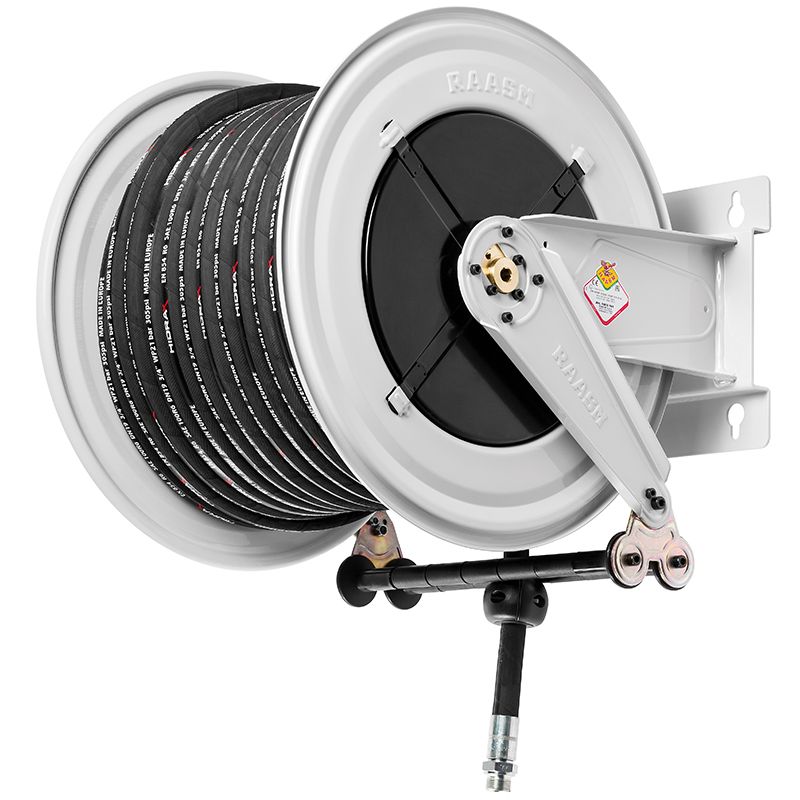

Fixed hose reel s. 560, for hot water, 100 bar, with black rubber hose 30 m, ø 3/4"

Features

Pressure 100 bar
Compatible fluids water max 130 °C
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic fixed
Material painted steel
Couplings zinc plated steel
Hose p/n 997.330
ø and hose length ø 3/4" - 30 m
Inlet G 1" (f)
Outlet G 3/4" (m)
Reel flow path AISI 304 stainless steel - zinc plated steel

Certifications

8560.201

Overall dimensions (mm)

8560.201

This product is also available without hose

Go to product sheet
