8550.103

P/N 8550.103

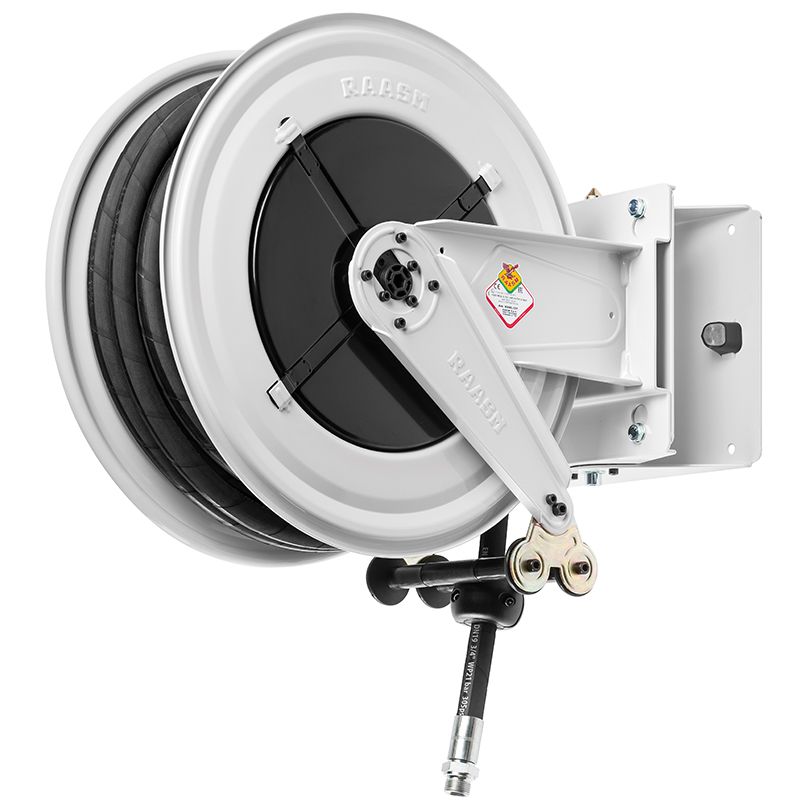

Swivelling hose reel s. 540, for air-water, 20 bar, with black rubber hose 15 m, ø 1"

Features

Pressure 20 bar
Compatible fluids air - water
Swivel joint brass
Seals Viton®
Characteristic swivelling
Material painted steel
Couplings zinc plated steel
Hose p/n 998.215
ø and hose length ø 1" - 15 m
Inlet G 1" (f)
Outlet G 1" (m)
Reel flow path brass - zinc plated steel

Certifications

8550.103

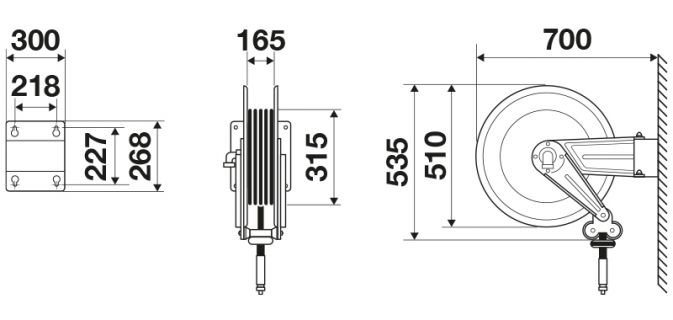

Overall dimensions (mm)

8550.103

This product is also available without hose

Go to product sheet
