8530.202

P/N 8530.202

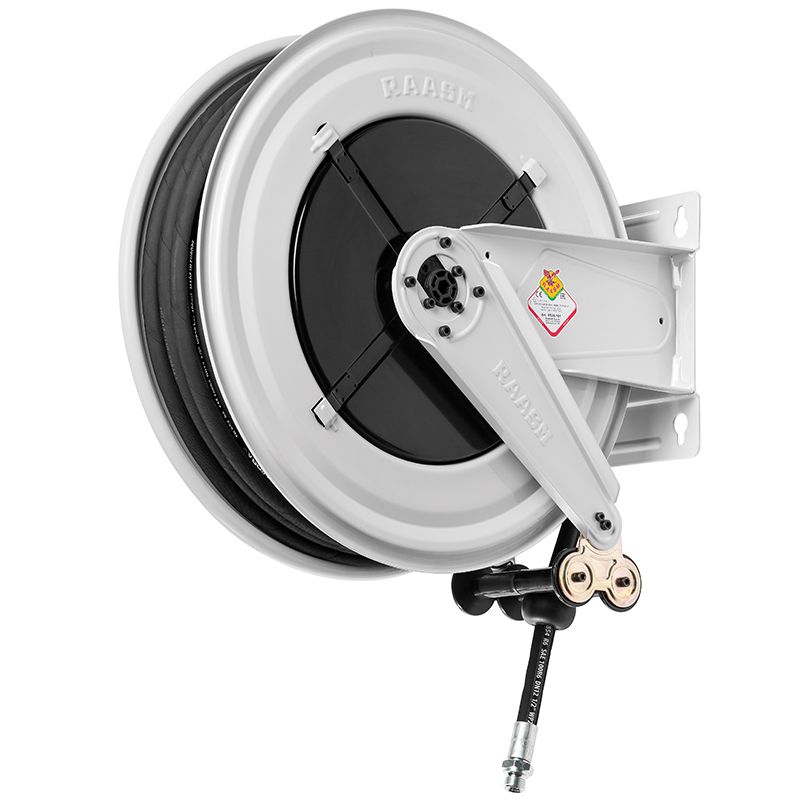

Fixed hose reel s. 530, for hot water, 100 bar, with black rubber hose 25 m, ø 1/2"

Features

Pressure 100 bar
Compatible fluids water max 130 °C
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic fixed
Material painted steel
Couplings zinc plated steel
Hose p/n 996.326
ø and hose length ø 1/2" - 25 m
Inlet G 1/2" (f)
Outlet G 1/2" (m)
Reel flow path AISI 304 stainless steel - zinc plated steel

Certifications

8530.202

Overall dimensions (mm)

8530.202

This product is also available without hose

Go to product sheet
