8530.150

P/N 8530.150

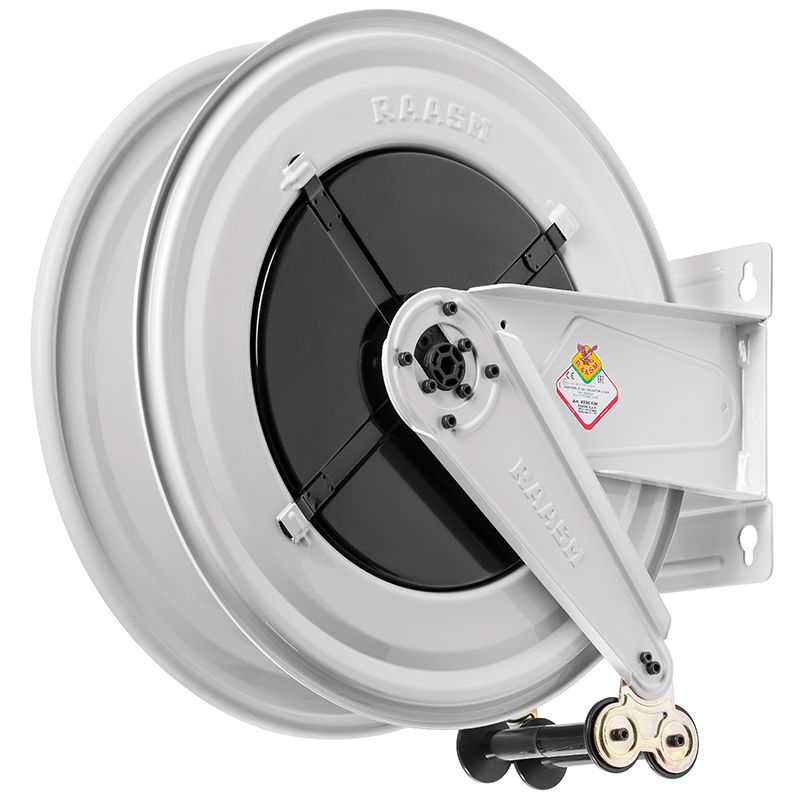

Fixed hose reel s. 530, for air-water, 20 bar, without hose. Inlet-outlet G 1" (f)

Features

Pressure 20 bar
Compatible fluids air - water - diesel fuel
Swivel joint brass
Seals Viton®
Characteristic fixed
Material painted steel
Couplings -
Hose -
ø and hose length -
Inlet G 1" (f)
Outlet G 1" (f)
Reel flow path brass - zinc plated steel

Certifications

8530.150

Overall dimensions (mm)

8530.150

Hose reels capacity

ø 3/8" ø 1/2" ø 5/8"
25 m 25 m 22 m
