8520.502

P/N 8520.502

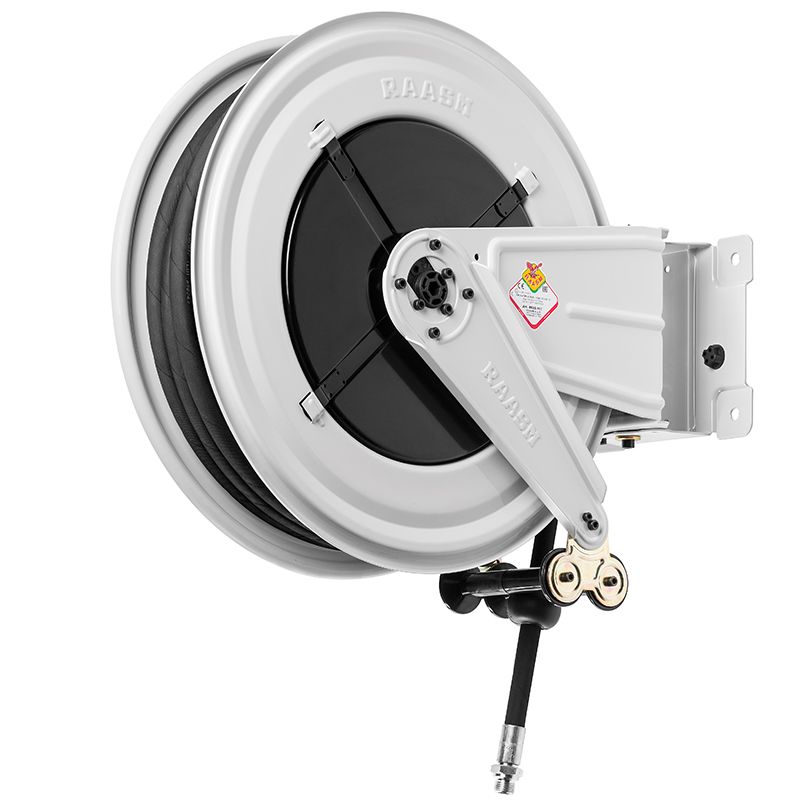

Swivelling hose reel s. 530, for grease, 600 bar, with black rubber hose 25 m, ø 3/8"

Features

Pressure 400 bar
Compatible fluids grease
Swivel joint zinc plated steel
Seals polyurethane
Characteristic swivelling
Material painted steel
Couplings zinc plated steel
Hose p/n 995.725
ø and hose length ø 3/8" - 25 m
Inlet G 3/8" (f)
Outlet G 1/4" (m)
Reel flow path zinc plated steel

Certifications

8520.502

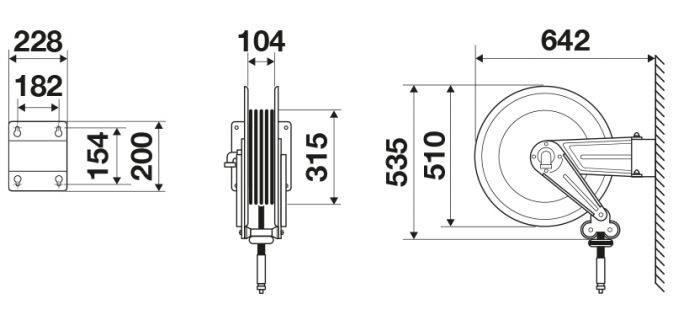

Overall dimensions (mm)

8520.502

This product is also available without hose
