8422.500

P/N 8422.500

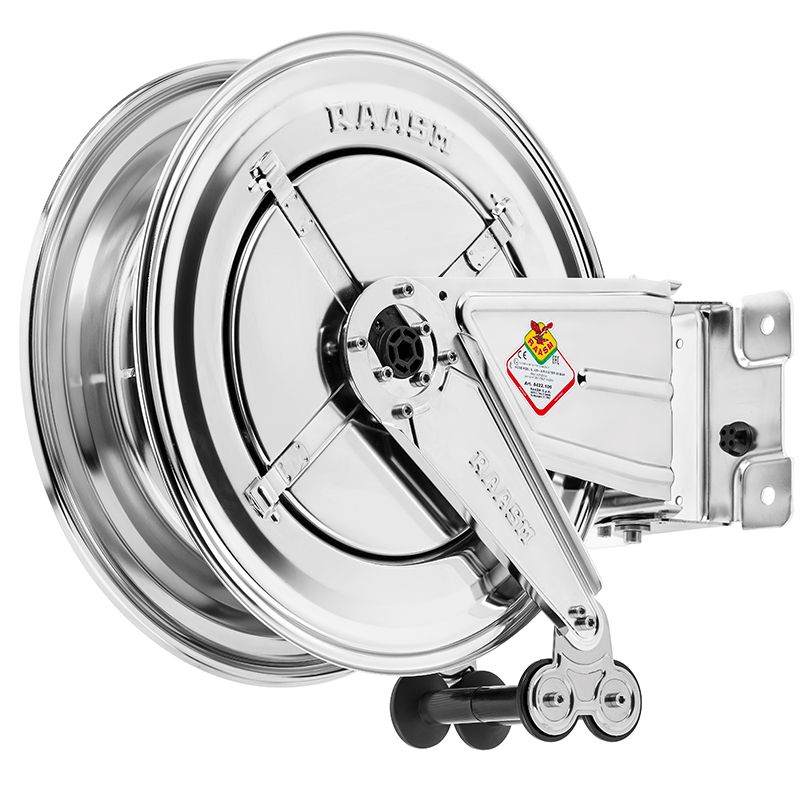

Swivelling hose reel in AISI 304 stainless steel s. 430, for grease, 600 bar, without hose. Inlet G 3/8 (f) - outlet G 1/2 (f)

Features

Pressure 600 bar
Compatible fluids grease
Swivel joint zinc plated steel
Seals polyurethane
Characteristic swivelling
Material AISI 304 stainless steel
Couplings -
Hose -
ø and hose length -
Inlet G 3/8" (f)
Outlet G 1/2" (f)
Reel flow path zinc plated steel - AISI 304 stainless steel

Certifications

8422.500

Overall dimensions (mm)

8422.500

Hose reels capacity

ø 5/16" ø 3/8" ø 1/2"
20 m 20 m 16 m
