8392.203

P/N 8392.203

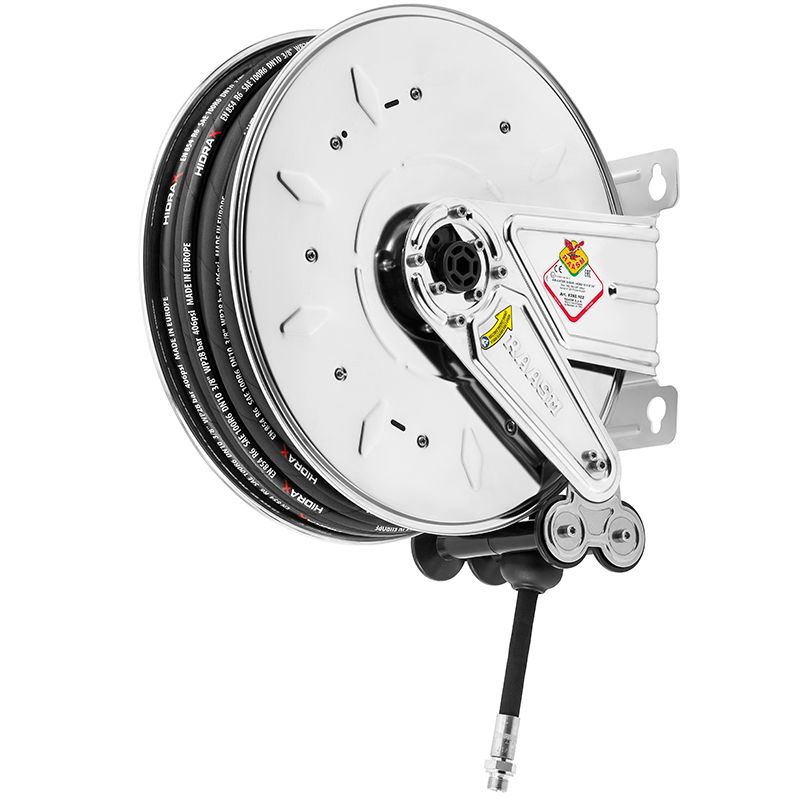

Fixed hose reel in AISI 304 stainless steel s. 390, for hot water, 100 bar, with black rubber hose 10 m, ø 1/2"

Features

Pressure 100 bar
Compatible fluids water max 130 °C, oils and similar products
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel
Couplings zinc plated steel
Hose p/n 996.310
ø and hose length ø 1/2" - 10 m
Inlet G 1/2" (f)
Outlet G 1/2" (m)
Reel flow path AISI 304 stainless steel

Certifications

8392.203

Overall dimensions (mm)

8392.203

This product is also available without hose
