Product sheet
File PDF - 200 KB

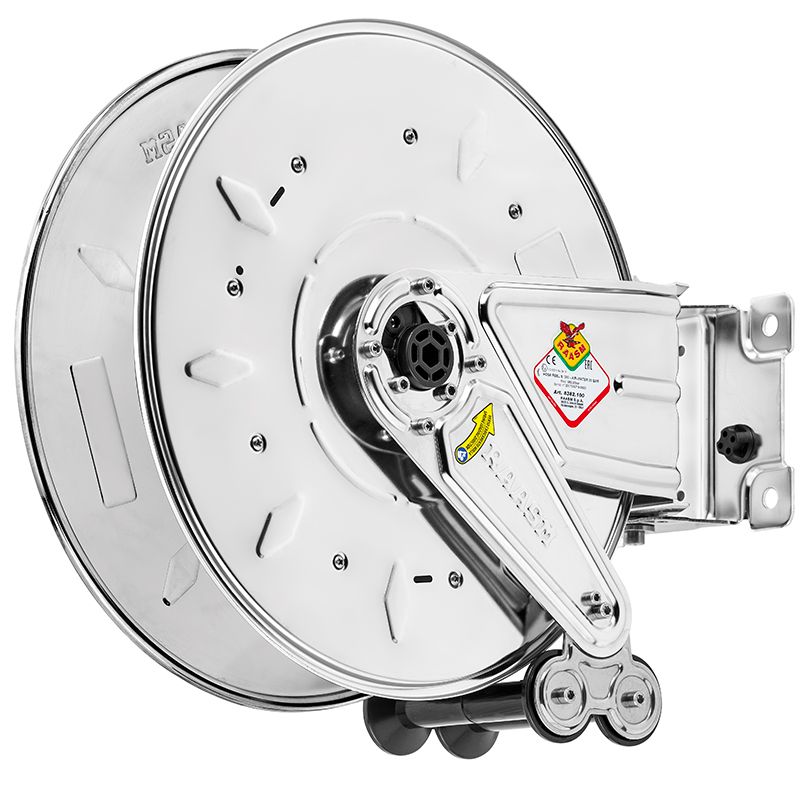

Swivelling hose reel in AISI 304 stainless steel s. 390, for grease, 600 bar, without hose. Inlet-outlet G 3/8" (f)
Pressure | 600 bar |
Compatible fluids | grease |
Swivel joint | zinc plated steel |
Seals | polyurethane |
Characteristic | swivelling |
Material | AISI 304 stainless steel |
Couplings | - |
Hose | - |
ø and hose length | - |
Inlet | G 3/8" (f) |
Outlet | G 3/8" (f) |
Reel flow path | zinc plated steel |
ø 1/4" | ø 5/16" | ø 3/8" | ø 1/2" |
---|---|---|---|
20 m | 20 m | 18 m | 15 m |
