8382.202

P/N 8382.202

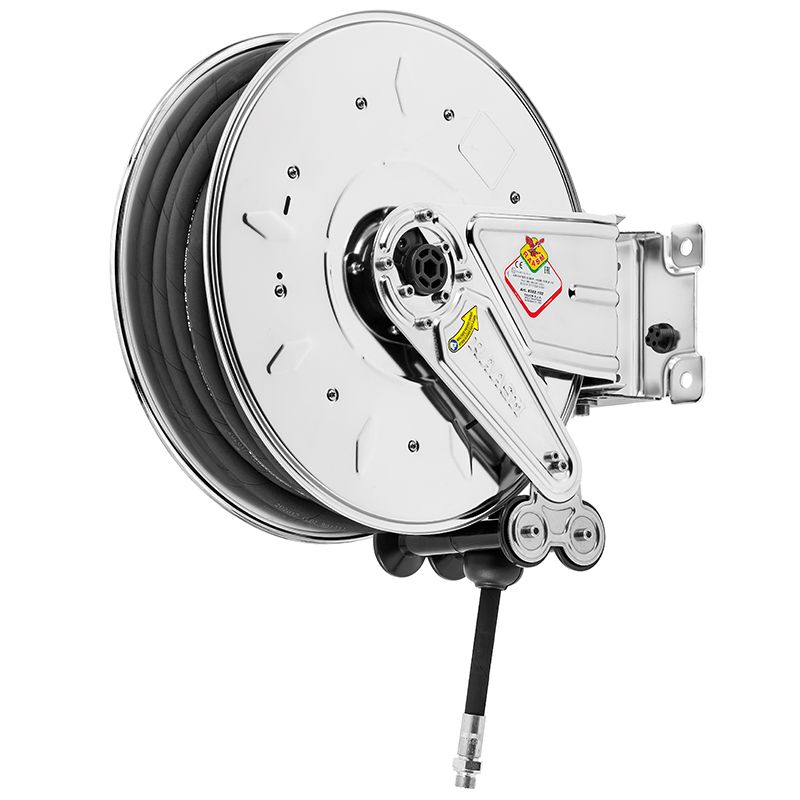

Swivelling hose reel in AISI 304 stainless steel s. 390, for hot water, 100 bar, with black rubber hose 17 m, ø 3/8"

Features

Pressure 100 bar
Compatible fluids water max 130 °C
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic swivelling
Material AISI 304 stainless steel
Couplings zinc plated steel
Hose p/n 995.318
ø and hose length ø 3/8" - 17 m
Inlet G 1/2" (f)
Outlet G 3/8" (m)
Reel flow path AISI 304 stainless steel

Certifications

8382.202

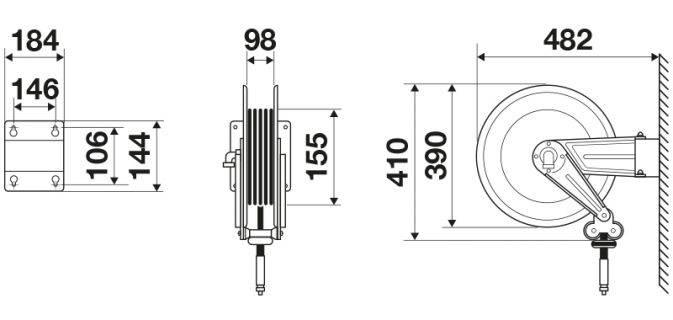

Overall dimensions (mm)

8382.202

This product is also available without hose
