8333.101

P/N 8333.101

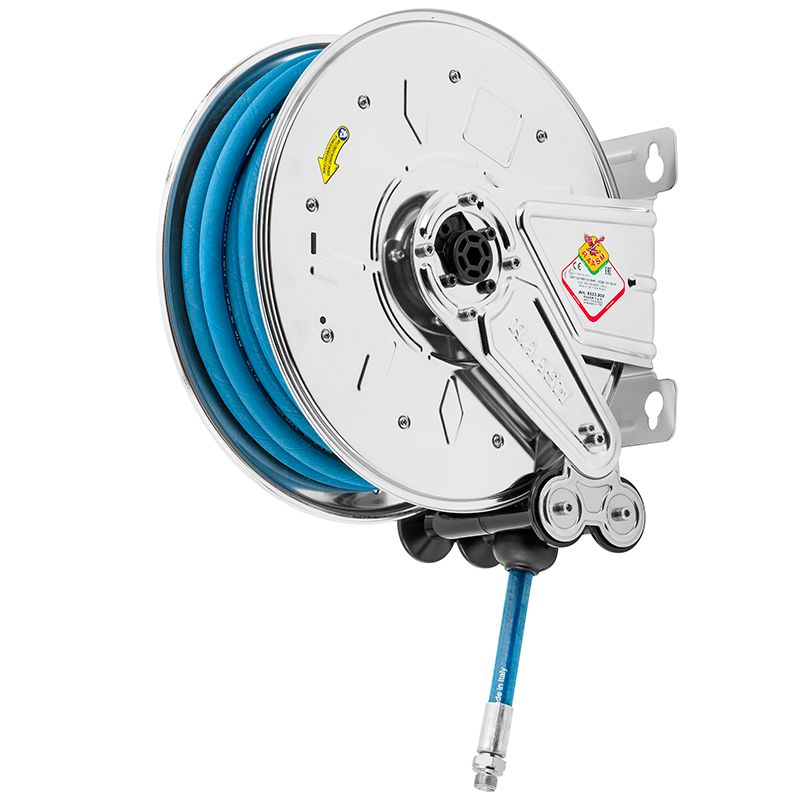

Fixed hose reel in AISI 304 stainless steel s. 330, for air-water, 10 bar, with hygienic hose 12 m, ø 3/8"

Features

Pressure 10 bar
Compatible fluids air - water
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel
Couplings zinc plated steel
Hose p/n 995.412
ø and hose length ø 3/8" - 12 m
Inlet G 3/8" (f)
Outlet G 3/8" (m)
Reel flow path zinc plated steel

Certifications

8333.101

Overall dimensions (mm)

8333.101

This product is also available without hose

Go to product sheet
