8332.202

P/N 8332.202

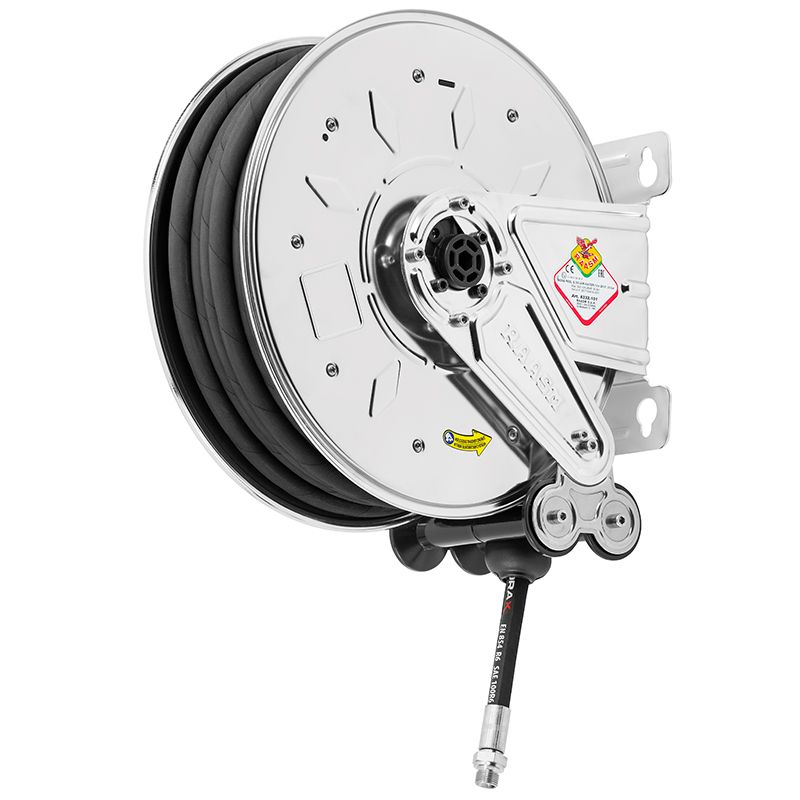

Fixed hose reel in AISI 304 stainless steel s. 330, for hot water, 100 bar, with black rubber hose 8 m, ø 1/2"

Features

Pressure 100 bar
Compatible fluids water max 130 °C
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel
Couplings zinc plated steel
Hose p/n 996.308
ø and hose length ø 1/2" - 8 m
Inlet G 1/2" (f)
Outlet G 1/2" (m)
Reel flow path AISI 304 stainless steel

Certifications

8332.202

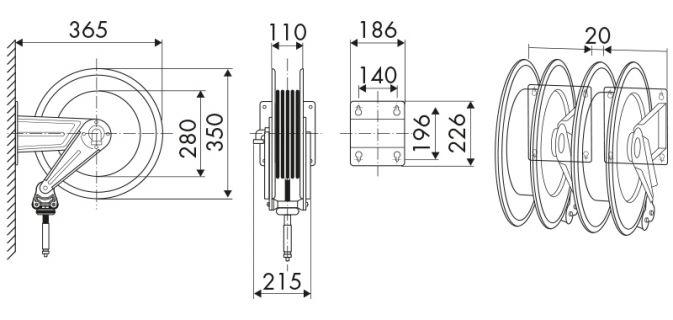

Overall dimensions (mm)

8332.202

This product is also available without hose

Go to product sheet
