8332.102

P/N 8332.102

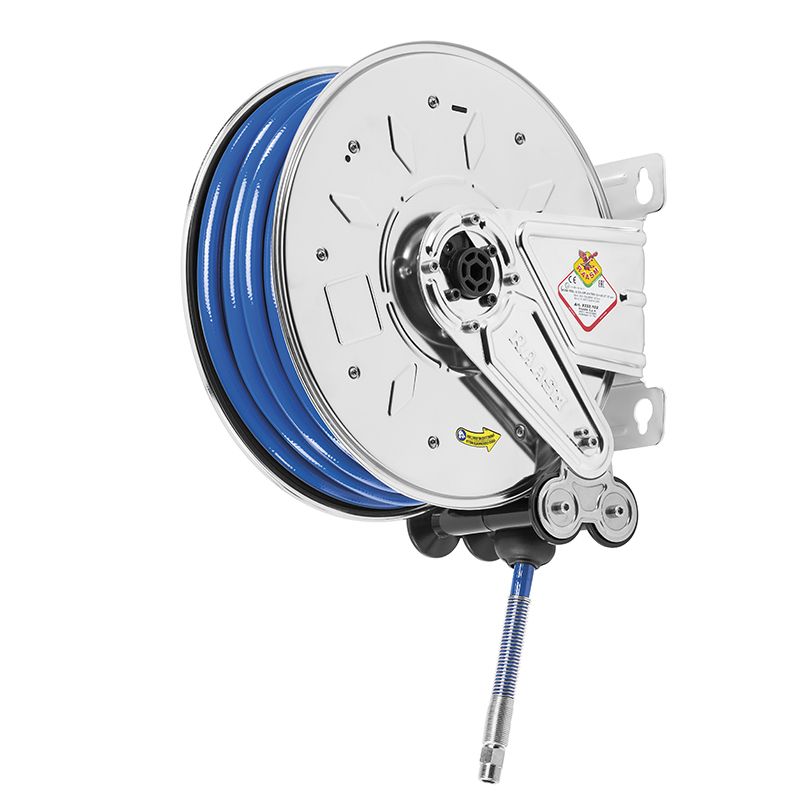

Fixed hose reel in AISI 304 stainless steel s. 330, for air-water, 20 bar, with polyurethane hose 15 m, ø 10x14.5 mm

Features

Pressure 20 bar
Compatible fluids air - water
Swivel joint brass
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel
Couplings brass
Hose p/n 972.115
ø and hose length ø 10x14.5 - 15 m
Inlet G 3/8" (f)
Outlet G 3/8" (m)
Reel flow path brass

Certifications

8332.102

Overall dimensions (mm)

8332.102

This product is also available without hose
