8292.104

P/N 8292.104

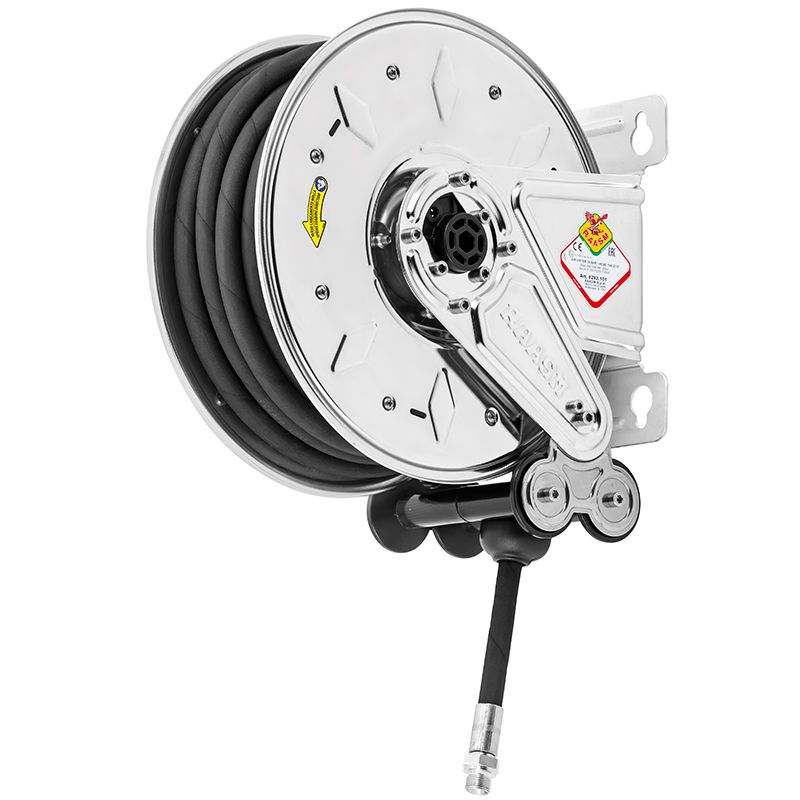

Fixed hose reel in AISI 304 stainless steel s. 290, for air-water, 20 bar, with black rubber hose 15 m, ø 1/4"

Features

Pressure 20 bar
Compatible fluids air - water
Swivel joint brass
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel
Couplings zinc plated steel
Hose p/n 993.215
ø and hose length ø 1/4" - 15 m
Inlet G 3/8" (f)
Outlet G 1/4" (m)
Reel flow path brass - AISI 304 stainless steel

Certifications

8292.104

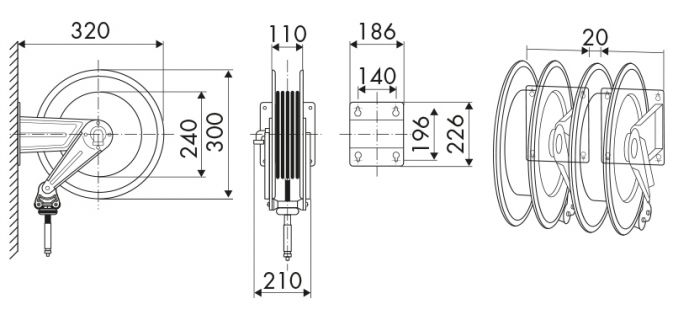

Overall dimensions (mm)

8292.104

This product is also available without hose

Go to product sheet
