Product sheet
File PDF - 200 KB

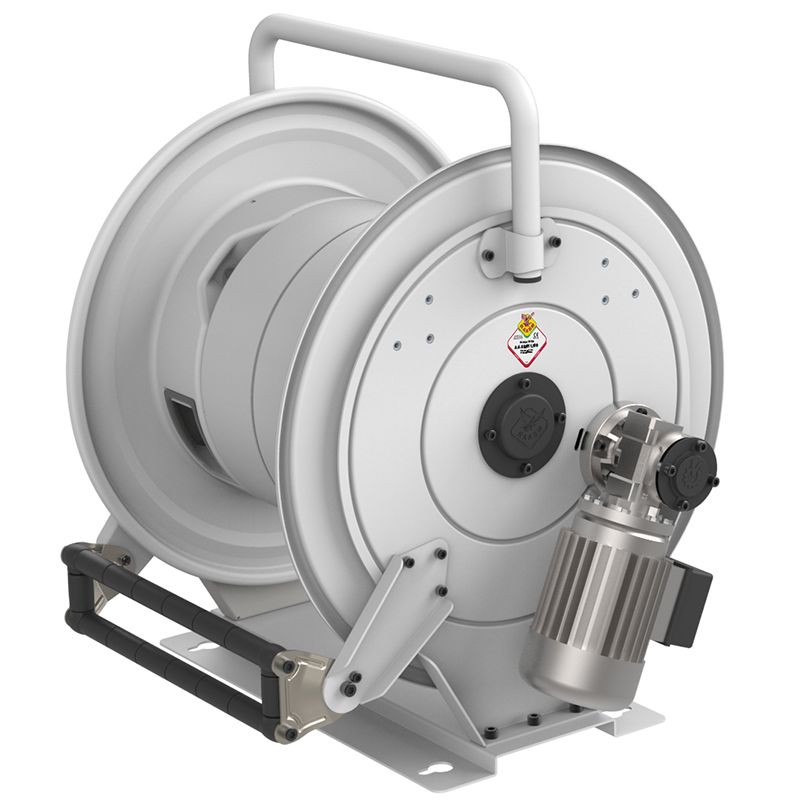

Hose reel with electric motorization 230/400 V AC in painted steel, s. 560 for hot water, 150 bar, without hose. Inlet-outlet G 1/2" (f)
Pressure | 150 bar |
Compatible fluids | water max 130 °C |
Swivel joint | AISI 304 stainless steel |
Seals | Viton® |
Characteristic | electric 230/400 V AC - 50/60 Hz |
Material | painted steel |
Couplings | - |
Hose | - |
ø and hose length | - |
Inlet | G 1/2" (f) |
Outlet | G 1/2" (f) |
Reel flow path | AISI 304 stainless steel - zinc plated steel |
ø 1/4" | ø 3/8" | ø 1/2" |
---|---|---|
180 m | 120 m | 90 m |
