7562001.300

P/N 7562001.300

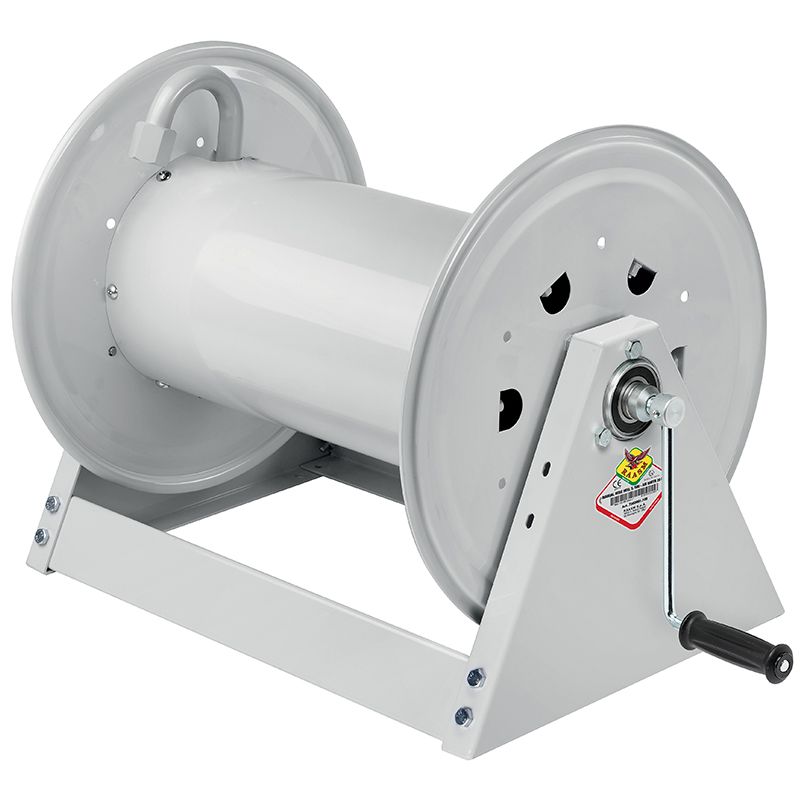

Manual hose reel s. 500, for hot water, 200 bar, without hose. Drum width 600 mm. Inlet G 3/8 (f) - outlet G 1/2 (f)

Features

Pressure 200 bar
Compatible fluids water max 130 °C
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic fixed
Material painted steel
Couplings -
Hose -
ø and hose length -
Inlet G 3/8" (f)
Outlet G 1/2" (f)
Reel flow path AISI 304 stainless steel - zinc plated steel

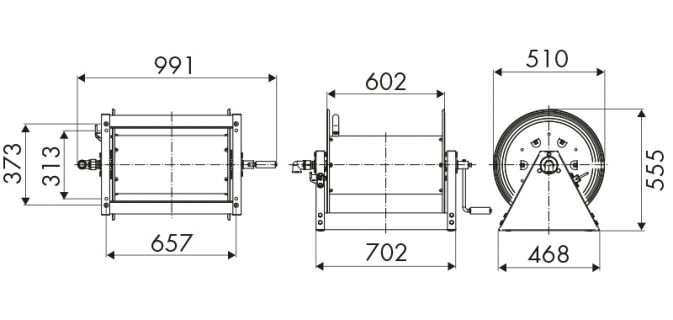

Overall dimensions (mm)

7562001.300

Hose reels capacity

ø 1/4" ø 3/8" ø 1/2" ø 3/4" ø 1"
400 m 280 m 220 m 110 m 70 m
