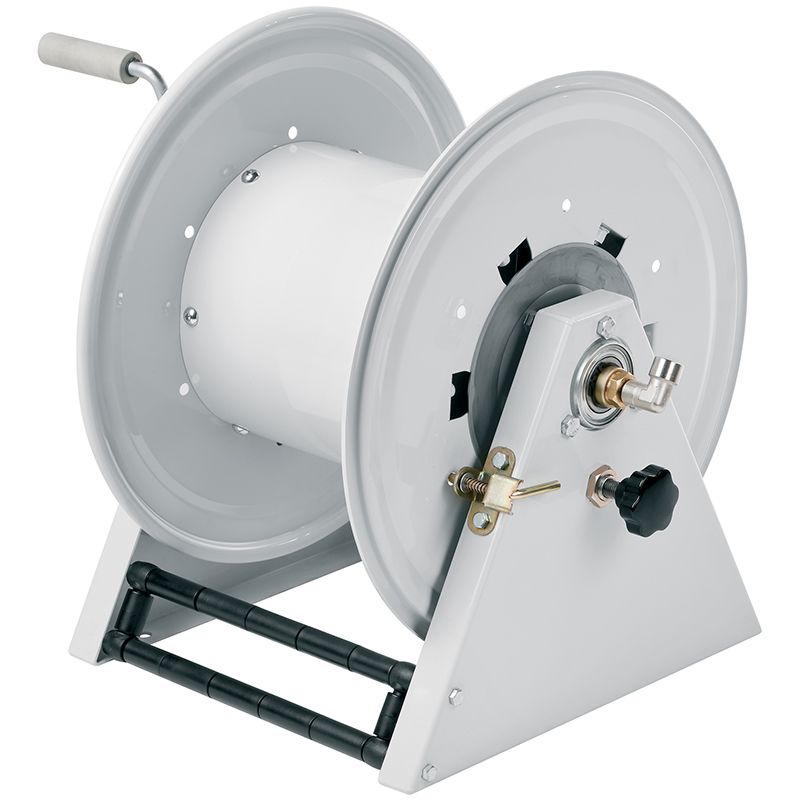

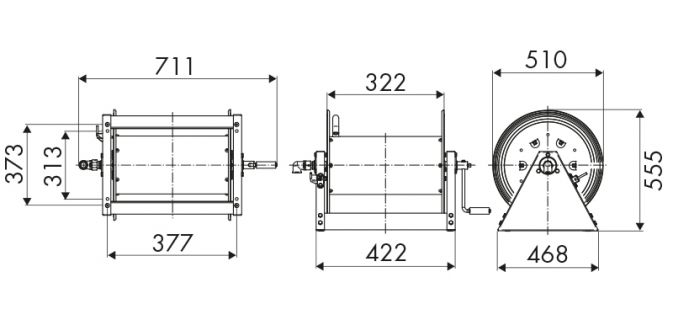

Manual hose reel s. 500, for hot water, 100 bar, without hose. Drum width 320 mm. Inlet-outlet G 1" (f)
Pressure | 100 bar |
Compatible fluids | water max 130 °C |
Swivel joint | AISI 304 stainless steel |
Seals | Viton® |
Characteristic | fixed |
Material | painted steel |
Couplings | - |
Hose | - |
ø and hose length | - |
Inlet | G 1" (f) |
Outlet | G 1" (f) |
Reel flow path | AISI 304 stainless steel - zinc plated steel |
ø 1/4" | ø 3/8" | ø 1/2" | ø 3/4" | ø 1" |
---|---|---|---|---|
200 m | 130 m | 100 m | 50 m | 30 m |
