7522001.150

P/N 7522001.150

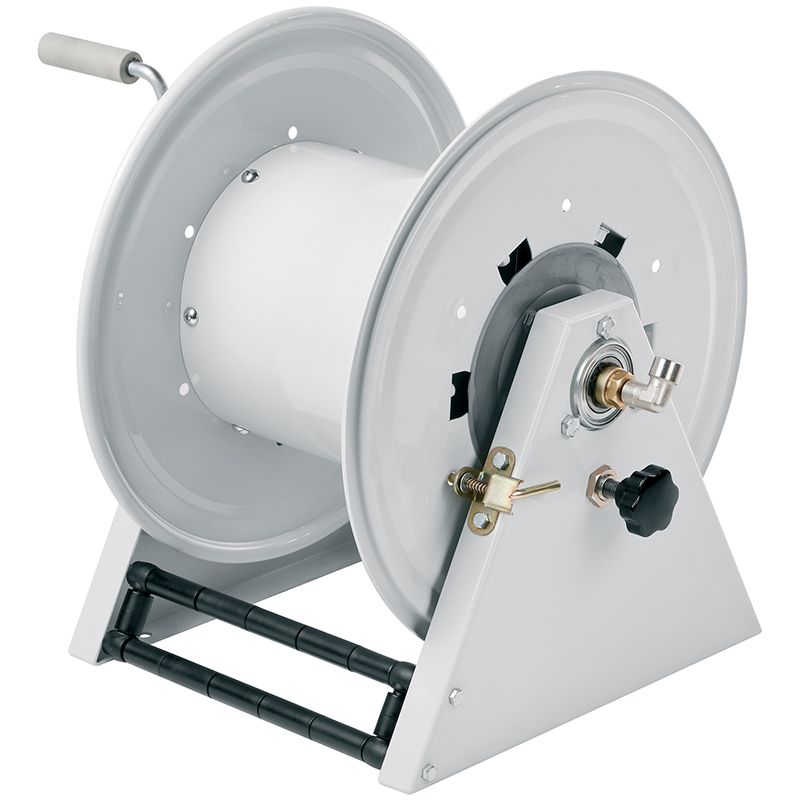

Manual hose reel s. 500, for air-water, 20 bar, without hose. Drum width 240 mm. Inlet-outlet G 1/2" (f)

Features

Pressure 20 bar
Compatible fluids air - water
Swivel joint brass
Seals Viton®
Characteristic fixed
Material painted steel
Couplings -
Hose -
ø and hose length -
Inlet G 1/2" (f)
Outlet G 1/2" (f)
Reel flow path brass - zinc plated steel

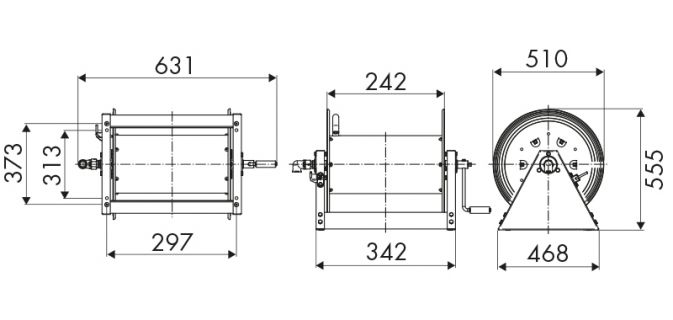

Overall dimensions (mm)

7522001.150

Hose reels capacity

ø 1/4" ø 3/8" ø 1/2" ø 3/4" ø 1"
130 m 85 m 65 m 30 m 20 m
