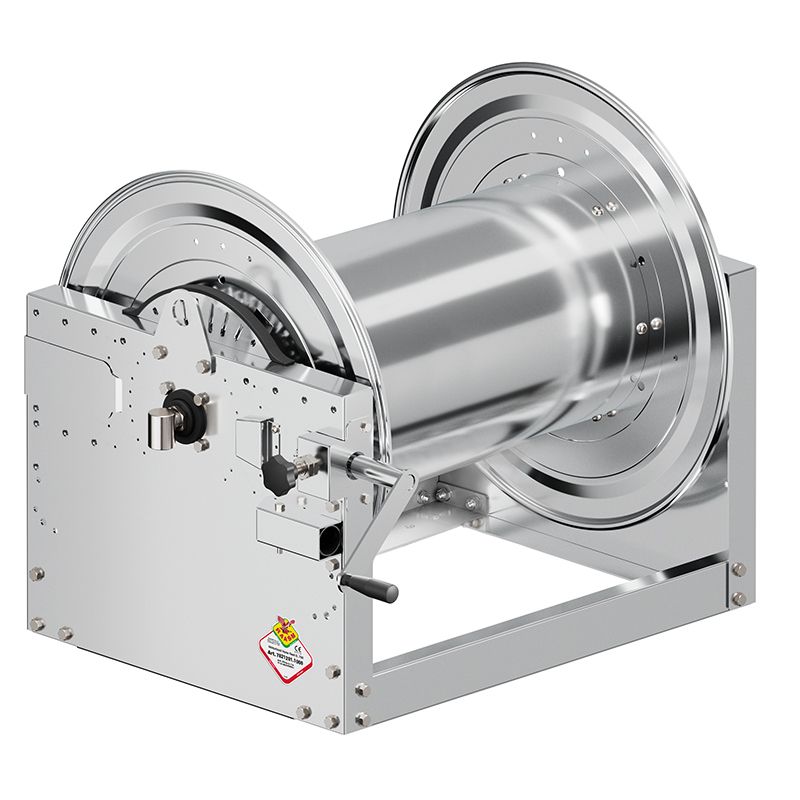

Manual hose reel in AISI 304 stainless steel s. 700, for water, oil, diesel and industrial fluids, 150 bar, without hose. Drum width 690 mm. Inlet-outlet G 1" (f)
Pressure | 150 bar |
Compatible fluids | water - oils - diesel fuel - industrial fluid |
Swivel joint | AISI 304 stainless steel |
Seals | Viton® |
Characteristic | manual |
Material | AISI 304 stainless steel |
Couplings | - |
Hose | - |
ø and hose length | - |
Inlet | G 1" (f) |
Outlet | G 1" (f) |
Reel flow path | AISI 304 stainless steel |
ø 3/8" | ø 1/2" | ø 3/4" | ø 1" | ø 1,1/4" | ø 1,1/2" | ø 2" |
---|---|---|---|---|---|---|
550 m | 350 m | 244 m | 134 m | 84 m | 75 m | 43 m |
